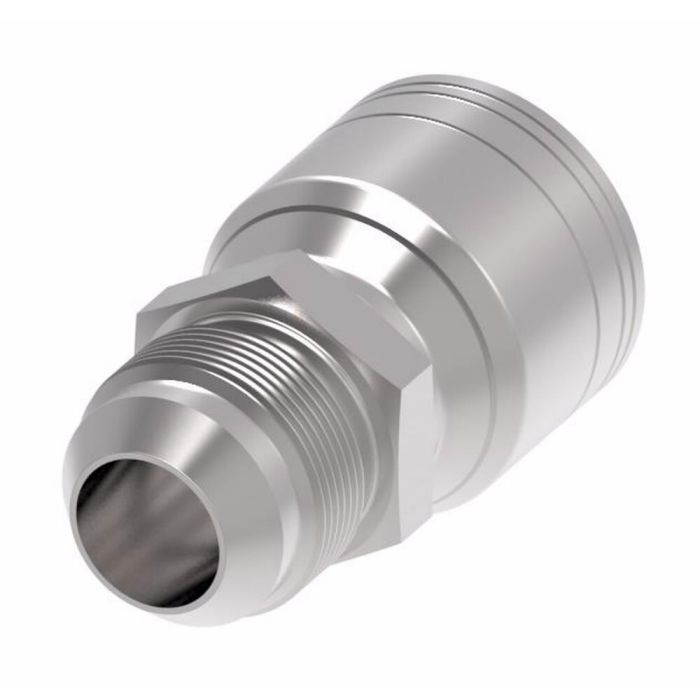

main product photo

WeatherGRIP Z series hose end

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, this carbon steel fitting carries SAE J1176 certification and is compatible with -12 dash size hose assemblies. The WeatherGRIP Z Series hose end features a JIC 37 male end type paired with a line/hose/tube connection, making it suitable for a wide range of hydraulic circuit configurations. Dura-Kote plating provides strong corrosion resistance, and the system-engineered design supports extended hose assembly service life. For circuits where shock hazards are present, H277 or H435 alternatives are recommended. Manufactured by Danfoss (IGS), this fitting is classified under UNSPSC code 27121707.

SKU: IG12Z-516

Supplier Part Number (MPN): 12Z-516

Specifications

Brand
Weatherhead® by Danfoss
Compatible Hose ID
3/4 in
Compatible Tube OD
1 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Hose, Male JIC
Connection Type 1
Hose
Connection Type 2
Male 37 deg JIC
Construction Style
Crimp
Cut-Off Factor
1.559 in
Dimension Standards
SAE J1176
Dimensions
2-3/4 in L
End Gender 1
Male
End Size 1
16
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H180, H145R, H190H, H280, H881, H290H, H245L, H190, H400, H290, H421, H039, H039H, EC115, EC215, EC118 and WH004 Series Hoses
Hex Size
1-3/8 in
Hose Dash Size
12
Inside Diameter
0.61 in
Material
Steel
Material Construction
Carbon Steel
Series
1Z Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Tube Outside Diameter 1
1 in

Product Questions & Answers (2)

Question by: Jimmy S on May 15, 2025, 12:22 PM
Got a -12 hose assembly on a medium pressure circuit and need a JIC 37 male end fitting. This the right part for that?
Answer by: Customer Support on May 17, 2025, 6:14 AM
That's what this fitting is built for. The WeatherGRIP Z Series covers general purpose low and medium pressure hydraulic applications, it's sized for -12 dash hose assemblies, and the male end is JIC 37. The Dura-Kote plating also gives it solid corrosion resistance, so it holds up well in everyday hydraulic circuit use.
Question by: Darryl H on May 19, 2025, 5:23 PM
Will this here fitting hold up alright in a hydraulics system for farm equipment?
Answer by: Customer Support on May 21, 2025, 6:01 AM
For general purpose low to medium pressure hydraulic applications, this carbon steel fitting should work just fine. If you've got high shock loads in your system, you might want to look at the H277 or H435 alternatives.
