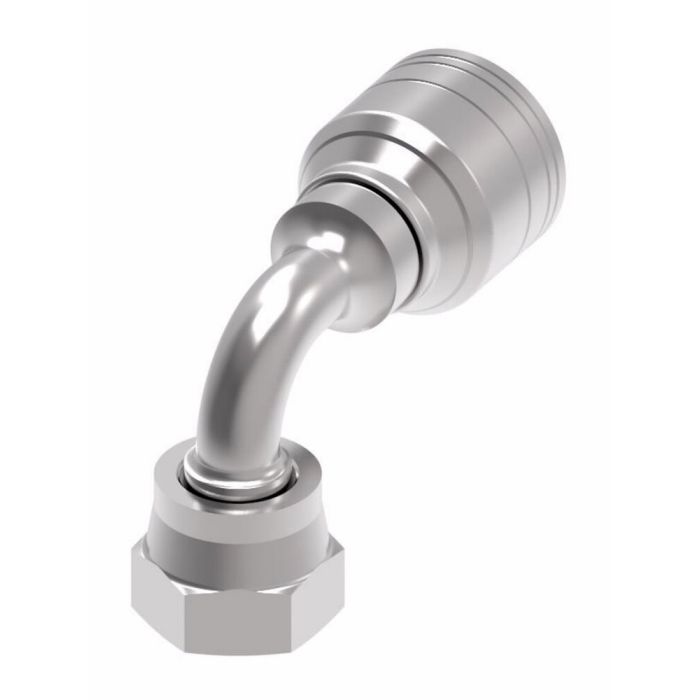

main product photo

WeatherGRIP Z series hose end

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, this carbon steel fitting features a female O-ring face seal (ORS) swivel connection with a short drop 90-degree elbow configuration. The WeatherGRIP Z Series hose end is engineered for -12 hose dash size compatibility and carries a 1.27-inch drop dimension, making it well-suited for routing hose assemblies in space-constrained installations.

Finished with Dura-Kote plating for corrosion resistance, the fitting is manufactured to SAE J1176 standards. Its swivel design supports easier assembly alignment, and the system-engineered construction is intended to extend hose assembly service life. Where shock hazards are present, Eaton Weatherhead recommends using H277 or H435 series hose in place of standard options. The fitting is supplied as a complete assembly and weighs 1.58 lb.

SKU: IG12Z-A30

Supplier Part Number (MPN): 12Z-A30

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Certifications
SAE J1176
Drop Dimension
1.27
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
1
End Type 1
FOR-SEAL
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-12
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Product Material
Carbon Steel
Product Width
1.13
Sub Brand
Weatherhead
Supplier Part Number
12Z-A30
Product Weight
0.58 lbs

Related Documents

Product Questions & Answers (2)

Question by: Shane D on Jul 22, 2025, 5:42 PM
got a -12 hose here, is this the right hose end for it?
Answer by: Customer Support on Jul 24, 2025, 6:41 AM
The key callout is the hose dash size. This WeatherGRIP Z series hose end is built for -12 hose, and it’s a complete fitting assembly with a female ORS (O-ring face seal) swivel connection.
Question by: Howard H on Feb 23, 2026, 7:06 AM
got a tight routing situation on a skid steer and need a 90-degree swivel fitting for -12 hose. this the right part?
Answer by: Customer Support on Feb 24, 2026, 1:59 PM
For -12 hose with a short 90-degree elbow, this fitting checks both boxes. The swivel design makes it easier to get everything lined up during assembly without fighting the hose, and the 1.27-inch drop dimension is specifically noted for space-constrained installations. It's rated for general purpose low and medium pressure hydraulic use, so as long as your application falls in that range, it should work well for what you're describing.
