WeatherGRIP Z series hose end

Ask A Question

Description & Features

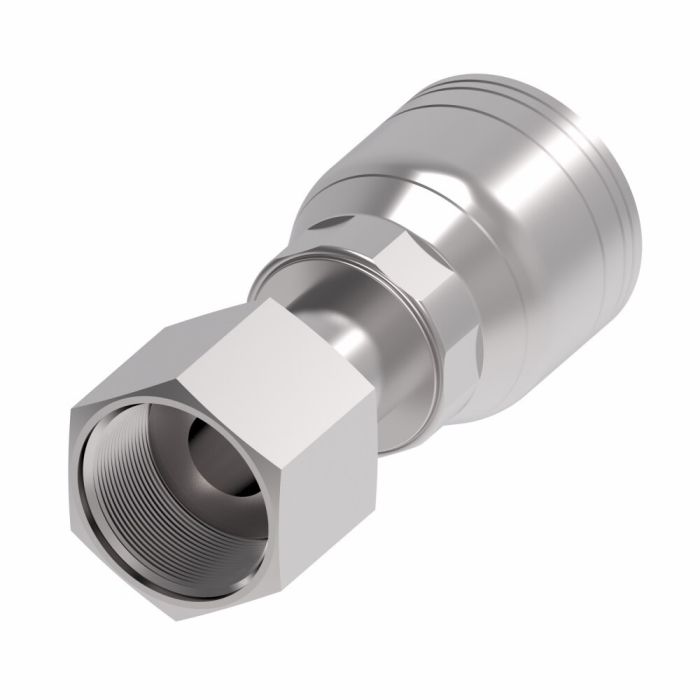

The WeatherGRIP Z series hose end offers an innovative design aimed at delivering exceptional performance and maximizing uptime. Manufactured by Danfoss (IGS) this hose end is engineered to extend the life of hose assemblies in general-purpose low and medium-pressure hydraulics.

Constructed from carbon steel the hose end is coated with Dura-Kote plating providing superior corrosion resistance in demanding environments. This product is suitable for use with H277 or H435 hoses in applications where shock hazards are present.

Featuring a female FOR-SEAL end and compatible with lines hoses or tubes the WeatherGRIP Z series hose end ensures a reliable connection. It has a hex size of 1.13 inches and a hose dash size of -12. The product complies with SAE J1176 certifications and does not include additional components such as batteries or blades.

Supplier Part Number: 12Z-S72

MPN: IG12Z-S72

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Certifications
SAE J1176
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Type 1
FOR-SEAL
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hex Size 2
1.13
Hose Dash Size
-12
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Product Material
Carbon Steel
Product Width
1.56
Sub Brand
Weatherhead
Supplier Part Number
12Z-S72
Product Weight
0.58 lbs

Related Documents

Product Questions & Answers (3)

Question by: Daryl A on Jul 22, 2025, 8:39 PM
trying to replace a hose end on a -12 hose, is this one meant to go with H277 or H435?
Answer by: Customer Support on Jul 24, 2025, 6:12 AM
It is set up for H277 or H435 hose and uses a -12 hose dash size, so it matches the common -12 size in those two hose series.
Question by: Scott S on Nov 5, 2025, 9:09 PM
got a line running H435 hose where we deal with shock loads pretty regular, this fitting gonna hold up for that kind of use?
Answer by: Customer Support on Nov 7, 2025, 7:02 AM
H435 hose is one of the two approved options for this fitting when shock hazards are present, so you're in good shape there. The WeatherGRIP Z series is specifically rated for general-purpose low and medium pressure hydraulics, and that H435 pairing is called out for exactly the kind of shock-load conditions you're describing. Just make sure you're working within low to medium pressure range and you'll be running the right combination.
Question by: Warren B on Oct 20, 2025, 12:00 PM
What kind of hydraulic jobs is this hose end good for?
Answer by: Customer Support on Oct 21, 2025, 9:55 PM
It's best for general-purpose, low to medium pressure hydraulic applications. If you've got shock hazards, pair it with H277 or H435 hoses.
