Danfoss / Eaton Coupling

Description & Features

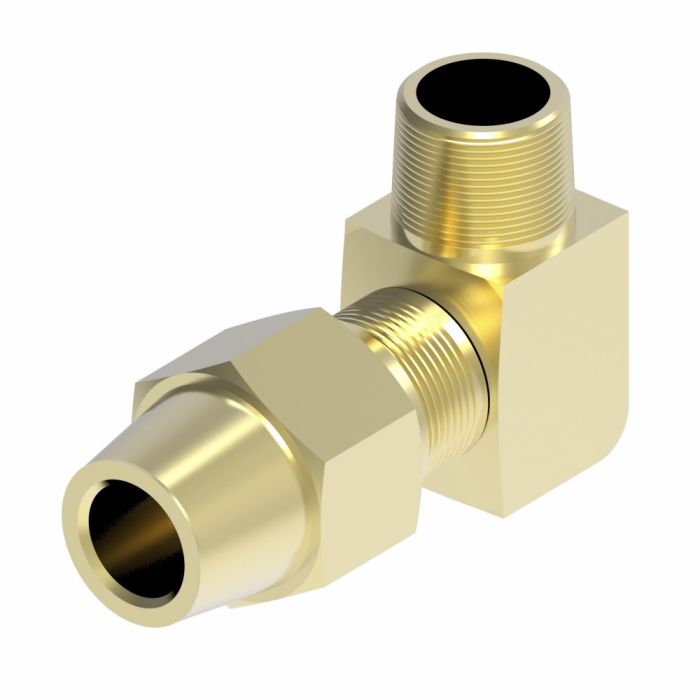

Constructed from brass with Dura-Kote plating for corrosion resistance, this 90° elbow adapter connects a 1/4" NPTF male thread to a 3/8" female line/hose/tube end. The angled configuration suits installations where a straight fitting would be impractical, allowing directional changes in copper tube routing within tight or constrained layouts.

The Danfoss / Eaton Coupling meets SAE 120202BA certification and is rated for operating pressures above standard SAE requirements. A minimum working temperature of -65°F makes it suitable for demanding ambient conditions. With a 0.56" hex on the female end, the fitting installs with standard tooling. Available across hundreds of styles, this product line offers broad compatibility for air brake and fluid transfer connections in commercial vehicle and industrial equipment applications.

SKU: IG1369X6

Supplier Part Number (MPN): 1369X6

Specifications

Certifications SAE 120202BA	Drop Dimension 0.94	End Gender 1 13554	End Gender 2 13555	End Size 1 0.25	End Size 2 0.38	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.56	ICC Elbow Adapters	Item Type NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.59	Sub Brand None	Supplier Part Number 1369X6	Product Weight 0.12 lbs

Product Questions & Answers (1)

Question by: Dwayne C on Jun 7, 2025, 8:24 PM

Will this fitting hold up in a brake system on a truck that sees some pretty rough winters?

Answer by: Customer Support on Jun 9, 2025, 6:11 AM

The Dura-Kote plating is there for superior corrosion resistance, so it should definitely hold up well even when exposed to road salt and other corrosives.
