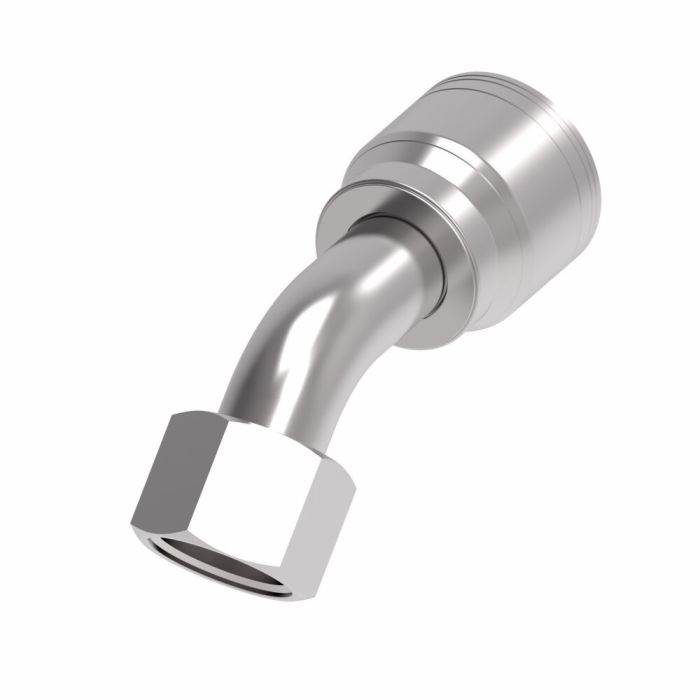

main product photo

WeatherGRIP Z series hose end

Ask A Question

Description & Features

This Eaton Weatherhead WeatherGRIP Z series hose end is designed for general-purpose, low- to medium-pressure hydraulic applications. It is suitable for use with H277 or H435 hoses where shock hazards may exist.

Featuring Dura-Kote plating for superior corrosion resistance, this fitting assembly offers an innovative design to deliver enhanced performance and maximum uptime. This system-engineered WeatherGRIP Z series hose end extends hose assembly life. This female JIC 37 end is made from carbon steel.

SKU: IG16Z-696

Supplier Part Number (MPN): 16Z-696

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Certifications
SAE J1176
Drop Dimension
1.07
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Type 1
JIC 37
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Product Material
Carbon Steel
Product Width
1.94
Sub Brand
Weatherhead
Supplier Part Number
16Z-696
Product Weight
0.10 lbs

Related Documents

Product Questions & Answers (2)

Question by: Kirk H on Nov 8, 2025, 4:22 PM
got a Weatherhead setup with H277 hose, dash 16. is the IG16Z-696 hose end the right match for that?
Answer by: Customer Support on Nov 10, 2025, 6:25 AM
For a -16 hose, this hose end is intended to pair with Eaton Weatherhead H277 or H435 hose, and it is a WeatherGRIP Z series fitting assembly with a female JIC 37 end.
Question by: Scott R on Aug 3, 2025, 8:09 AM
Got a line running H435 hose in a spot that sees some shock loads every now and then. This the right fitting to pair with it?
Answer by: Customer Support on Aug 4, 2025, 7:29 PM
H435 is one of the two hoses this fitting is specifically called out for when shock hazards are present, so yeah, you're matched up right. The WeatherGRIP Z series is rated for general-purpose low to medium pressure hydraulic applications, and that hose pairing is part of how the system is engineered to hold up over time. The Dura-Kote plating also helps in tougher environments where corrosion is a concern.
