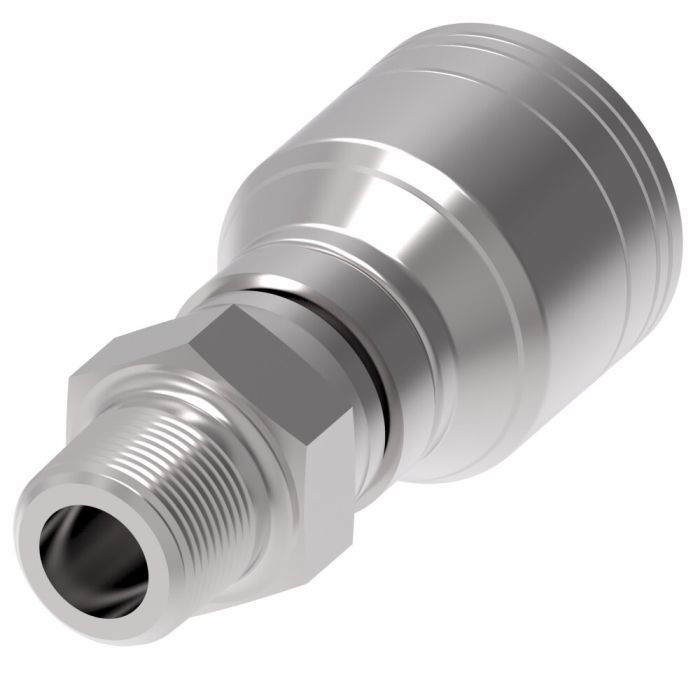

WeatherGRIP Z series hose end

Ask A Question

Description & Features

The WeatherGRIP Z series hose end from Danfoss is engineered for superior performance in general purpose low and medium pressure hydraulic applications. This hose end is covered with Dura-Kote plating ensuring extended corrosion resistance and the longevity of the hose assembly.

Featuring an innovative design this product works seamlessly with H277 or H435 hoses providing optimum functionality in environments where shock hazards may occur. Crafted from durable carbon steel it meets SAE J1176 certification standards for reliability.

Specifications include a male MPT end type with a 1-inch end size effectively designed without the need for adjustments or calibration. Its straightforward design ensures maximum uptime and enhances the overall efficiency of your hydraulic systems.

Supplier Part Number: 16Z-J16

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Certifications
SAE J1176
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Size 1
1
End Type 1
MPT
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-16
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Product Material
Carbon Steel
Product Width
1.94
Sub Brand
Weatherhead
Supplier Part Number
16Z-J16
Product Weight
0.97 lbs

Related Documents

Product Questions & Answers (3)

Question by: Keith H on May 27, 2025, 5:39 PM
What kind of hydraulic applications is this hose end best suited for?
Answer by: Customer Support on May 28, 2025, 7:03 PM
This WeatherGRIP Z series hose end works best in general purpose low and medium pressure hydraulic systems. It's also designed to work with H277 or H435 hoses where you've got shock hazards.
Question by: Phil P on Jun 19, 2025, 4:14 PM
got a setup running H277 hose and wondering if this fitting'll work with it or if I need something different
Answer by: Customer Support on Jun 20, 2025, 9:37 PM
H277 is one of the two hoses this fitting is specifically matched to work with, the other being H435. Both are called out for use with the WeatherGRIP Z series, particularly in situations where shock hazards are a concern. So you're good to go on that front.
Question by: Norm A on Nov 17, 2025, 7:13 PM
got a -16 hose, is this 16Z-J16 the right hose end for it?
Answer by: Customer Support on Nov 19, 2025, 11:46 AM
It’s built around a -16 hose dash size and it has a 1 inch male MPT end, so it matches a -16 hose setup where you need that 1 inch MPT connection.
