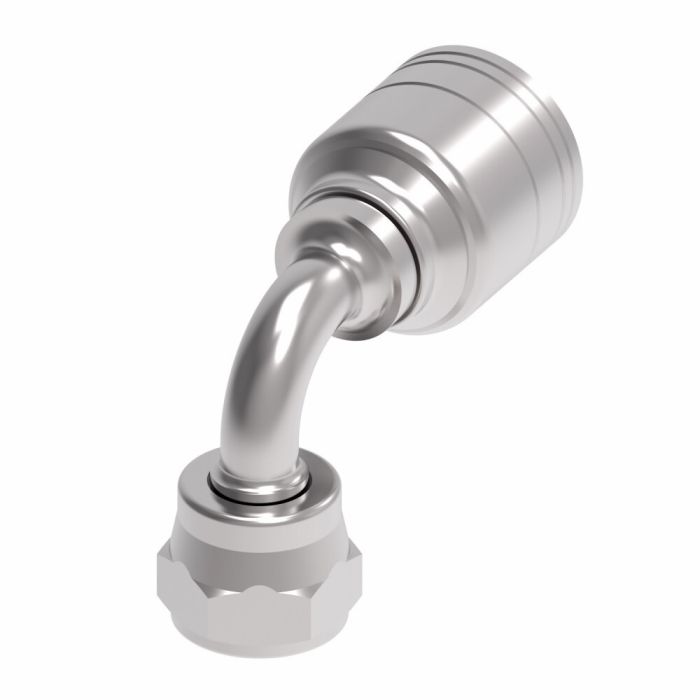

Weathergrip Z Series Hose End

Description & Features

Designed for general-purpose low and medium pressure hydraulics, the Weathergrip Z Series Hose End is an essential component for robust hydraulic systems. Featuring a BSPP 60° cone female connection at a 90° elbow, it is ideal for applications where shock hazards exist, especially when used with H277 or H435 hoses. The product's carbon steel construction ensures durability, while the Dura-Kote plating offers superior corrosion resistance, extending the life of your hose assemblies.

The Weathergrip Z Series Hose End is system-engineered to deliver optimal performance and maximum uptime, making it a reliable choice for demanding industrial environments. Certified by SAE J1176, it guarantees compliance with high industry standards. With a drop dimension of 3.2500 and a width of 2.41 inches, this fitting assembly is designed to meet the rigorous demands of your hydraulic applications.

SKU: IG20Z-90P

Supplier Part Number (MPN): 20Z-90P

Specifications

Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	Certifications SAE J1176	Class WEB-ITEM	Drop Dimension 3.25	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	End Gender 1 13553	End Type 1 BSPP	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.41	Supplier Part Number 20Z-90P	Product Weight 1.73 lbs

Product Questions & Answers (1)

Question by: Patty S on May 14, 2025, 3:09 PM

Can this Weathergrip hose end handle the kind of bumps and shakes you get in heavy machinery?

Answer by: Customer Support on May 16, 2025, 6:41 AM

Designed to work with H277 or H435 hoses, this hose end is especially useful where there's a risk of shock hazards.
