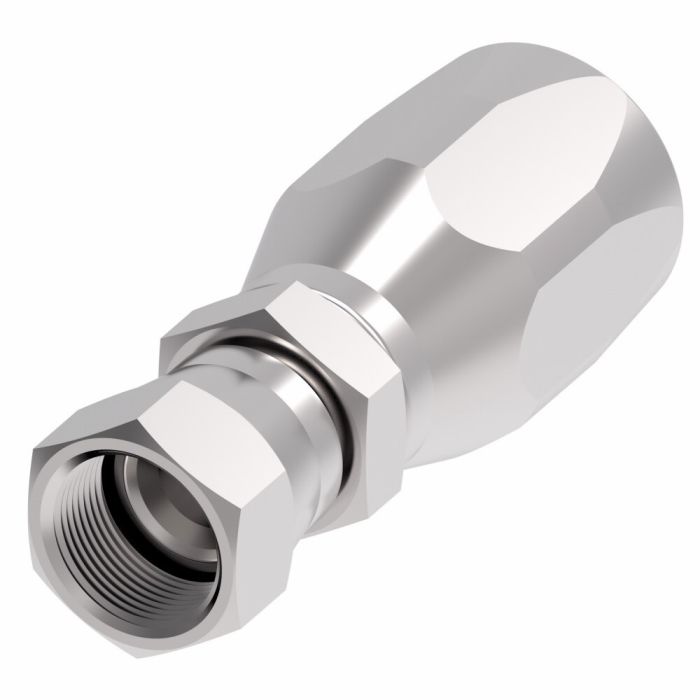

Danfoss / Eaton Hose End 247N Series

Description & Features

The Danfoss / Eaton Hose End 247N Series is specifically designed for medium pressure and high temperature hose lines suitable for a variety of applications including industrial truck and small engine environments where temperature considerations are critical.

Engineered from carbon steel this product ensures durability and reliability making it a robust choice for demanding conditions. The hose end 247N Series helps cut down assembly times boosting production efficiency across various settings. Featuring JIC 37 female swivel with a 0.4375 End Size 1 and a line/hose/tube end type it's ideal for integrating into existing systems.

Notable for its versatile application range it is an effective solution in contexts where temperature management is essential.

Supplier Part Number: 24704N-604

Specifications

Brand Weatherhead® by Danfoss	Compatible Hose ID 1/4 in	Compatible Tube OD 1/4 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Construction Style Reusable	Cut-Off Factor 1.315 in	Dimensions 2.01 in L	End Gender 1 Female	End Size 1 7/16 in	Finish Dura-Kote™	Fitting Type Hose End	For Use With H059, H069, H166, H169, H229, H366 and H569 Series Hoses	Hex Size 0.63 x 0.56 in	Hose Dash Size 04	Inside Diameter 1-5/16 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 247 N Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20	Tube Outside Diameter 1 1/4 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
24705N-B05	5/16 in	5/16 in	Male NPT	05
24710N-608	5/8 in	1/2 in	Female SAE 37 deg JIC Flare Swivel	10
IG24704N102	1/4 in	1/8 in	Male NPTF	04
IG24705N605	5/16 in	5/16 in	Female SAE 37 deg JIC Flare Swivel	05
IG24706N-406	3/8 in	3/8 in	Female SAE 45 deg Flare Swivel	06
IG24706N-605	3/8 in	5/16 in	Female SAE 37 deg JIC Flare Swivel	05
IG24706N106	3/8 in	3/8 in	Male NPTF	06
IG24706N606	3/8 in	3/8 in	Female SAE 37 deg JIC Flare Swivel	06
IG24708N608	1/2 in	1/2 in	Female SAE 37 deg JIC Flare Swivel	08
IG24710N-610	5/8 in	5/8 in	Female SAE 37 deg JIC Flare Swivel	08
IG24716N616	1 in	1 in	Female SAE 37 deg JIC Flare Swivel	16

Product Questions & Answers (1)

Question by: Hugh C on Jul 23, 2025, 8:38 PM

Can this hose end handle high temps in an engine environment?

Answer by: Customer Support on Jul 25, 2025, 10:52 AM

Yes, this Eaton Weatherhead 247N series hose end is designed for medium pressure and high temperature hose lines, making it suitable for industrial, truck, and small engine applications where temperature is a concern.
