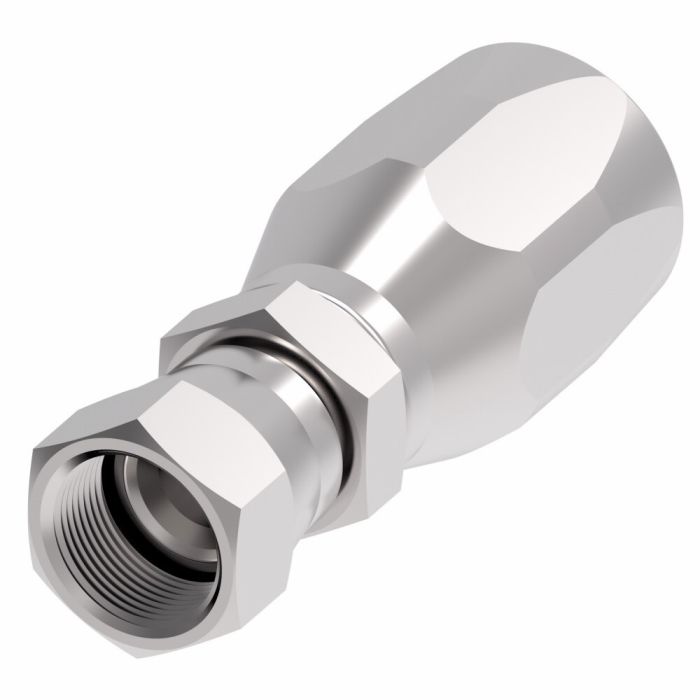

Danfoss / Eaton Hose End 247N Series

Description & Features

The Danfoss / Eaton Hose End 247N Series is renowned for its durability and reliability across a variety of medium pressure and high temperature hose applications. Constructed from robust carbon steel the hose end is designed to deliver optimal performance even in demanding conditions.

Engineered for compatibility with truck industrial and small engine applications this hose end accommodates high temperatures making it a versatile choice for challenging environments. The JIC 37 female swivel end ensures a secure and leak-free connection while the 0.875 end size supports a wide range of hose lines.

Featuring a line/hose/tube end type and a 1-inch hex size the 247N series hose end simplifies assembly processes and enhances production efficiency. Despite its sturdy build it is lightweight with a product width of just 1.13 inches. This hose end is ECCN classified under EAR99 making it suitable for various export scenarios without stringent compliance requirements.

Supplier Part Number: 24710N-610

Specifications

Brand Weatherhead® by Danfoss	a Dimensions 3.1 in	Adjustable End Without Adjustable End	Adjustment Without Adjustment	Battery Included Without Battery	Blades Included Without Blades	Calibrated Without Calibration	Case Included Without Case	Check Valve Without Check Valve	Color Coded Without Color Coded	Compatible Hose ID 1/2 in	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Flare Swivel	Construction Style Reusable	Customer Programmable Without Customer Programmable	Cut-Off Factor 1.812 in	Dimensions 3.1 in L	Diode Without Diode	Electrical Flag Without Electrical Flag	End Connection Torque 55 to 70 lb-ft	End Gender 1 Female	End Size 1 7/8 in	Finish Dura-Kote™	Fitting Type Hose End	For Use With H059, H069, H166, H169, H229, H366 and H569 Series Hoses	Hex Size 1 x 1 in	Hose Dash Size 08	Inside Diameter 1.81 in	Machine Mountable Without Machine Mountable	Mandrel Required Without Mandrel	Manual Override Option Without Manual Override	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40	Ratcheting Without Ratcheting	Remote Control Without Remote Control	Series 247 N Series	Switch Connector Without Switch Connector	Thread Sealant Without Thread Sealant	Thread Size 7/8-14	Thread Type UNF

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Type 2	Hose Dash Size
24705N-B05	5/16 in	5/16 in	Male NPT	05
24710N-608	5/8 in	1/2 in	Female SAE 37 deg JIC Flare Swivel	10
IG24704N-604	1/4 in	1/4 in	Female SAE 37 deg JIC Flare Swivel	04
IG24704N102	1/4 in	1/8 in	Male NPTF	04
IG24705N605	5/16 in	5/16 in	Female SAE 37 deg JIC Flare Swivel	05
IG24706N-406	3/8 in	3/8 in	Female SAE 45 deg Flare Swivel	06
IG24706N-605	3/8 in	5/16 in	Female SAE 37 deg JIC Flare Swivel	05
IG24706N106	3/8 in	3/8 in	Male NPTF	06
IG24706N606	3/8 in	3/8 in	Female SAE 37 deg JIC Flare Swivel	06
IG24708N608	1/2 in	1/2 in	Female SAE 37 deg JIC Flare Swivel	08
IG24716N616	1 in	1 in	Female SAE 37 deg JIC Flare Swivel	16
