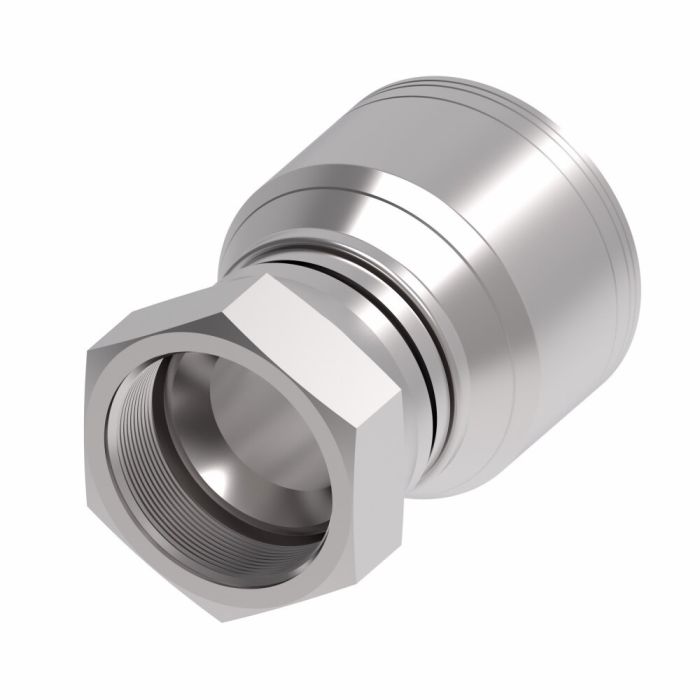

main product photo

Danfoss / Eaton Hose End R2 MM SAE 37 Swivel

Ask A Question

Description & Features

Designed for general-purpose low and medium-pressure hydraulic applications, the Eaton Weatherhead Hose End R2 MM SAE 37 Swivel is a dependable fitting solution. It features a JIC 37 female swivel end and is constructed from durable carbon steel to ensure resilience in demanding environments. The Dura-Kote plating provides superior corrosion resistance, enhancing longevity and performance.

This fitting is engineered to extend the life of hose assemblies, making it ideal for use with H277 or H435 hoses where shock hazards may exist. Certified under SAE J1176 standards, this fitting ensures compatibility and reliability in hydraulic systems. With a hose dash size of -24 and a hex size of 2.25, it is specifically crafted for efficient connections.

SKU: IG24Z-624

Supplier Part Number (MPN): 24Z-624

Specifications

Application
General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
Certifications
SAE J1176
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Type 1
JIC 37
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hex Size 2
2.25
Hose Dash Size
-24
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
2.70
Sub Brand
Weatherhead
Supplier Part Number
24Z-624
Product Weight
1.91 lbs

Related Documents

Product Questions & Answers (2)

Question by: Gene H on May 9, 2025, 1:58 PM
trying to replace a 24Z-624, is this the same Weatherhead hose end or am I lookin at the wrong one
Answer by: Customer Support on May 10, 2025, 4:03 PM
Match it up by part number. This item is the Eaton Weatherhead hose end with supplier part number 24Z-624 (SKU IG24Z-624), built as an R2 MM hose end with a JIC 37 degree female swivel.
Question by: Dean W on Jan 18, 2026, 4:45 PM
fitting says it works with H277 or H435 hose where shock hazards exist -- does that mean it ain't rated for other hoses in those same conditions, or is that just a recommendation?
Answer by: Customer Support on Jan 20, 2026, 10:25 AM
The shock hazard callout is specific to H277 and H435 hoses. For general low and medium pressure hydraulic work without shock concerns, this fitting covers a broader range of R2 hose applications. When shock loads are part of the picture, pairing it with one of those two hose types is what the engineering behind this assembly was built around. Staying within that guidance keeps the assembly performing the way it was intended.
