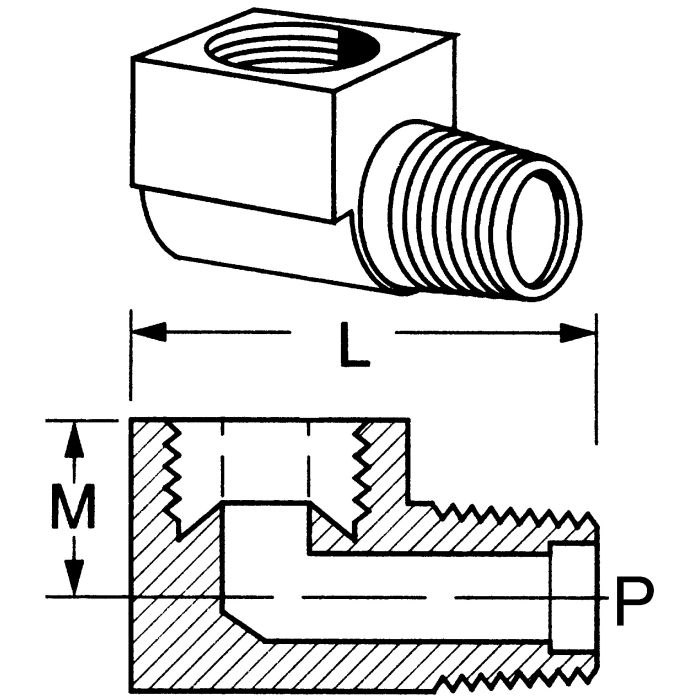

A brass 90° elbow adapter with a 3/8 in. NPTF male end and a 5/8 in. inverted flare female end, this Danfoss / Eaton Coupling is suited for hydraulic brake, power steering, fuel line, and transmission cooler line applications. The 90° configuration allows direction changes in tight installations where straight fittings are not practical.
Constructed from brass and finished with Dura-Kote plating, the fitting offers corrosion resistance suited to demanding hydraulic environments. It meets SAE 040202 certification and is rated for operating pressures above standard SAE requirements. The working temperature range starts at -65°F, supporting use across a broad range of service conditions. With hundreds of available styles in this product family, routing and layout flexibility is straightforward to achieve.
SKU: IG402X6X6
Supplier Part Number (MPN): 402X6X6
|
Application
Hydraulic brake, power
steering, fuel lines and transmission cooler lines, LP and natural gas (special order). instrumentation and hydraulic systems. |
Certifications
SAE 040202
|
Drop Dimension
0.95
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.38
|
End Size 2
0.63
|
End Type 1
NPTF
|
End Type 2
Inverted
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Inverted Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.75
|
Sub Brand
None
|
Supplier Part Number
402X6X6
|
Product Weight
0.12 lbs
|
