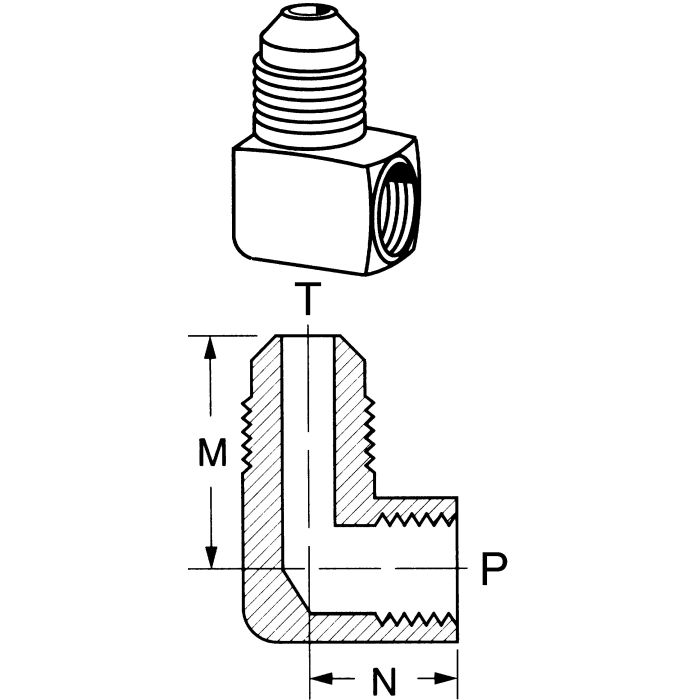

Constructed from brass with Dura-Kote plating for corrosion resistance, this 90° elbow adapter connects a 1/8 in. NPTF female port to a 7/16 in. SAE male end, making it well suited for routing directional changes in tight installations. Rated to exceed SAE standards for operating pressure, it is designed for use across a broad range of systems including hydraulic, pneumatic, refrigeration, power steering, and instrumentation, as well as LP and natural gas service. The working temperature range extends down to -65°F, supporting reliable performance in demanding thermal conditions.
The Danfoss / Eaton Coupling is part of a broad product family offering hundreds of adapter styles, providing flexibility when configuring hydraulic and fluid power circuits. Certified to SAE 010203, it meets established industry standards for this adapter category. Item type is classified as an NPTF Female/SAE Male 90° Elbow Adapter.
SKU: IG50X4
Supplier Part Number (MPN): 50X4
|
Application
LP and natural gas,
flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems. |
Certifications
SAE 010203
|
Drop Dimension
0.47
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
0.13
|
End Size 2
0.44
|
End Type 1
NPTF
|
End Type 2
SAE
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
NPTF Female/SAE Male 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.60
|
Sub Brand
None
|
Supplier Part Number
50X4
|
Product Weight
0.08 lbs
|
