Danfoss / Eaton Coupling

Description & Features

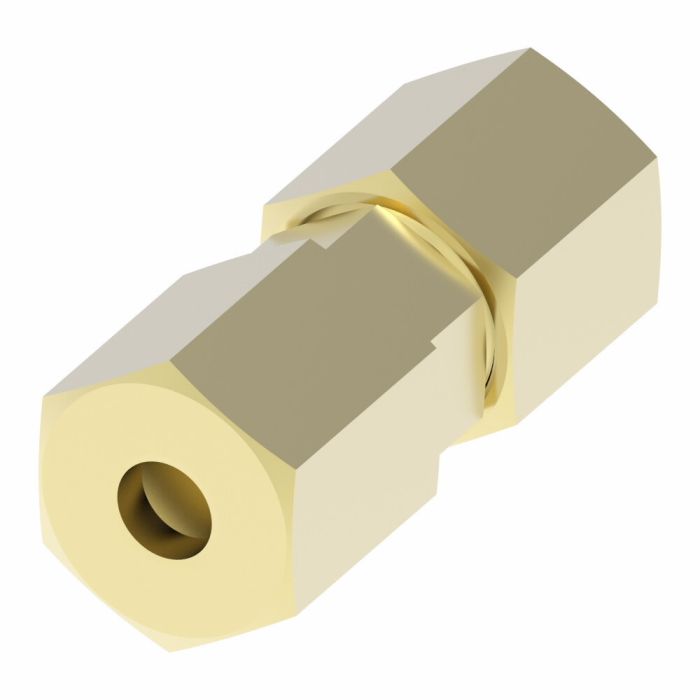

Constructed from brass with Dura-Kote plating for corrosion resistance, this push-to-connect female union is designed for use in instrumentation, hydraulic, and pneumatic systems. Both ends accept 0.5-inch push-to-connect fittings, making it a straightforward union solution where tool-free connections are preferred.

The Danfoss / Eaton Coupling meets SAE 060111 certification and is rated for operating pressures above standard SAE requirements. A minimum working temperature of -65°F supports use in demanding environmental conditions. With a hex size of 0.81 inches and a package weight of 0.5 lb, the fitting is compact and easy to handle during assembly.

SKU: IG62X8

Supplier Part Number (MPN): 62X8

Specifications

Application Other - Instrumentation, hydraulic, and pneumatic systems	Certifications SAE 060111	End Gender 1 13553	End Gender 2 13555	End Size 1 0.50	End Size 2 0.50	End Type 1 Push to Connect	End Type 2 Push to Connect	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.81	ICC Union Adapters	Item Type Push to Connect Female/Push to Connect Female Union	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.81	Sub Brand None	Supplier Part Number 62X8	Product Weight 0.16 lbs

Product Questions & Answers (1)

Question by: Lyle S on Jun 20, 2025, 5:50 PM

Will this work with a standard half-inch connection?

Answer by: Customer Support on Jun 22, 2025, 9:29 AM

This union accepts 0.5-inch push-to-connect fittings on both ends, which should integrate easily into compatible systems.
