Danfoss / Eaton Coupling

Description & Features

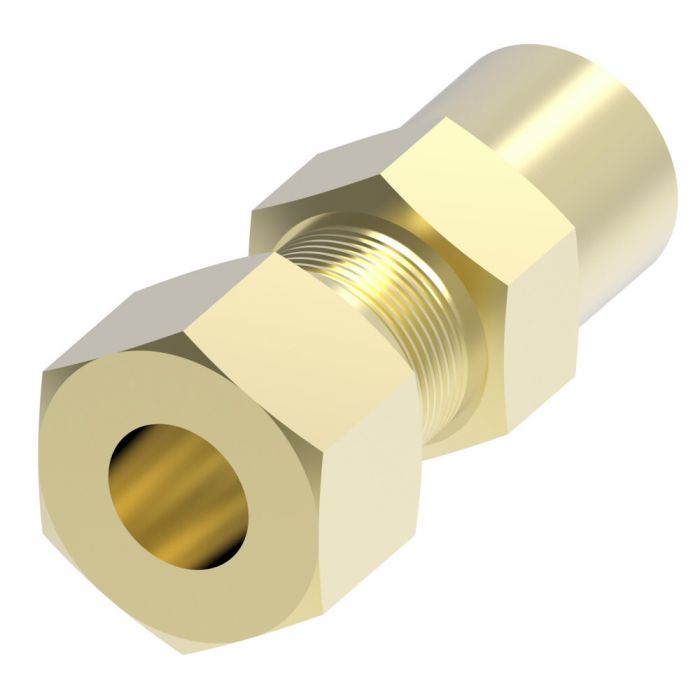

Constructed from brass, this straight adapter is designed for instrumentation, hydraulic, and pneumatic systems requiring a reliable female-to-female connection. It features a 1/8 in. NPTF threaded end on one side and a 1/4 in. hose/tube end on the other, making it a practical choice where these two connection types need to be joined in a single fitting.

The Danfoss / Eaton Coupling carries Dura-Kote plating, which provides strong corrosion resistance suited to demanding service environments. Operating pressure capability exceeds SAE standards, and the design is rated for temperatures as low as -65°F. With a 1/2 in. hex on the hose/tube end, the fitting accepts standard tooling for secure installation.

SKU: IG661X4

Supplier Part Number (MPN): 661X4

Specifications

Application Other - Instrumentation, hydraulic, and pneumatic systems	End Gender 1 13553	End Size 1 0.13	End Size 2 0.25	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.50	ICC Straight Adapters	Item Type NPTF Female to Hose/Pipe/Tube Female	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.56	Sub Brand None	Supplier Part Number 661X4	Product Weight 0.05 lbs

Product Questions & Answers (1)

Question by: Daryl G on Jul 3, 2025, 6:26 AM

Will this work with a regular pipe thread?

Answer by: Customer Support on Jul 5, 2025, 6:14 AM

This adapter has an NPTF (National Pipe Taper Fuel) thread on one side, which is a dry seal thread and might require sealant for optimal performance with standard NPT threads.
