Danfoss / Eaton Coupling

Description & Features

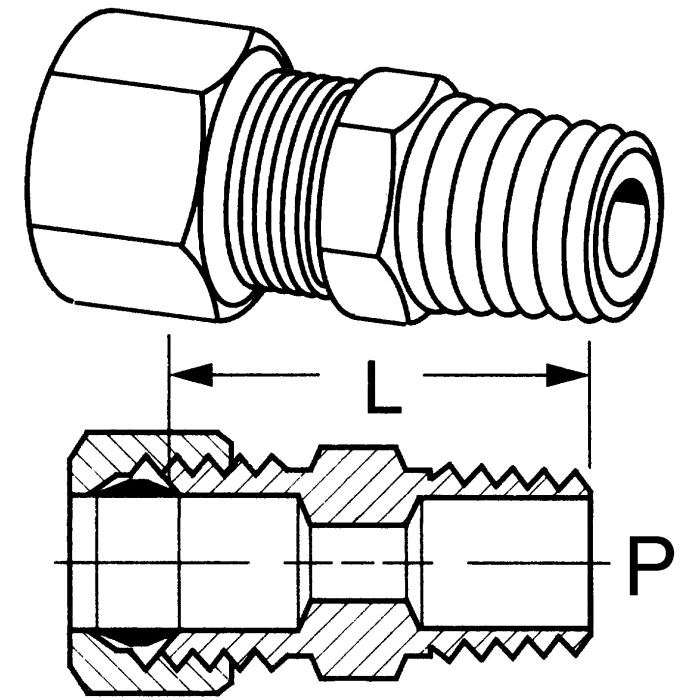

Constructed from brass, this straight compression-style male connector is rated for instrumentation, hydraulic, and pneumatic system applications. One end features a 1/8 in. NPTF male thread, while the opposite end accepts a 1/8 in. line, hose, or tube connection, with a 3/8 in. hex for standard wrench installation. The Danfoss / Eaton Coupling meets SAE 060102BA certification and is designed to handle operating pressures above standard SAE thresholds.

Dura-Kote plating provides corrosion resistance suited to demanding service environments. The minimum working temperature is rated to -65°F, supporting use across a broad range of operating conditions. As part of a product family offering hundreds of connector styles, this fitting offers flexibility for complex or multi-component system builds where consistent quality and compatibility are priorities.

SKU: IG68X2

Supplier Part Number (MPN): 68X2

Specifications

Application Other - Instrumentation, hydraulic, and pneumatic systems	Certifications SAE 060102BA	End Gender 1 13554	End Size 1 0.13	End Size 2 0.13	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.38	ICC Straight Adapters	Item Type NPTF Male Male to Hose/Pipe/Tube Female	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.44	Sub Brand None	Supplier Part Number 68X2	Product Weight 0.03 lbs

Product Questions & Answers (1)

Question by: Bobby C on Feb 4, 2026, 8:23 PM

What kind of operating pressure can this handle? Gotta make sure it's up to snuff for my setup.

Answer by: Customer Support on Feb 6, 2026, 2:37 PM

This Danfoss/Eaton coupling is designed to handle operating pressures above standard SAE thresholds, ensuring it can handle demanding hydraulic, instrumentation, and pneumatic system applications.
