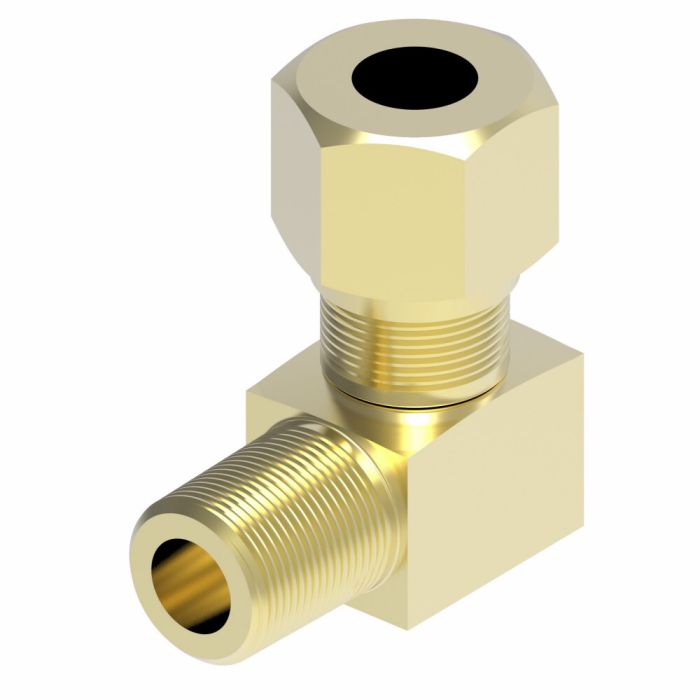

Danfoss / Eaton Coupling

Description & Features

Engineered for reliability in demanding environments, this Danfoss / Eaton Coupling is a precision-crafted 90° male elbow adapter suitable for instrumentation, hydraulic, and pneumatic systems. Designed with NPTF male and line/hose/tube female connections, it ensures a secure fit with a consistent drop dimension of 0.9400 inches. This adapter features Dura-Kote plating, offering superior corrosion resistance to extend its service life.

Constructed from durable brass, this coupling supports higher operating pressures than SAE standards, making it ideal for high-performance applications. With an end size of 0.25 inches on both connection points and a hex size of 0.81 inches, it provides design flexibility and compatibility across various configurations. The product is part of the Elbow Adapters category, known for its robust performance and reliability.

SKU: IG691X8X4

Supplier Part Number (MPN): 691X8X4

Specifications

Application Instrumentation, hydraulic and pneumatic systems.	Drop Dimension 0.94	End Gender 1 13554	End Gender 2 13555	End Size 1 0.25	End Size 2 0.25	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.81	ICC Elbow Adapters	Item Type NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.81	Sub Brand None	Supplier Part Number 691X8X4	Product Weight 0.15 lbs

Product Questions & Answers (1)

Question by: Cody B on Apr 30, 2025, 7:48 AM

Can this elbow handle the pressure in my hydraulic system?

Answer by: Customer Support on May 1, 2025, 1:41 PM

This coupling is designed to support higher operating pressures than SAE standards, making it suitable for high-performance hydraulic applications.
