Danfoss / Eaton Coupling

Description & Features

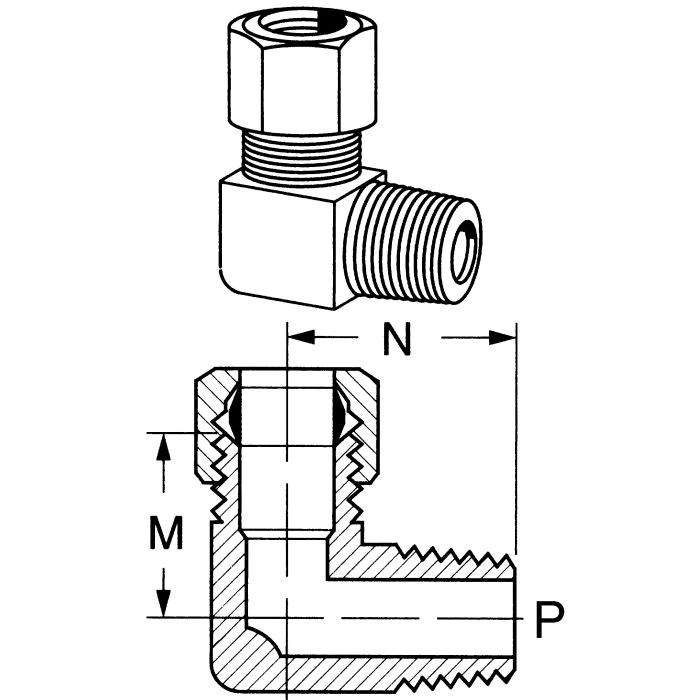

Constructed from brass, this 90° elbow adapter provides a reliable connection between a 1/4 in. NPTF male thread and a 1/4 in. female line/hose/tube end. The right-angle configuration suits instrumentation, hydraulic, and pneumatic systems where space constraints or routing requirements call for a direction change at the connection point. It meets SAE 060202BA certification and is rated for operating pressures above standard SAE thresholds.

The Danfoss / Eaton Coupling features Dura-Kote plating for corrosion resistance, making it a practical choice for demanding service environments. With a hex size of 0.56 in. and a drop dimension of 0.84 in., the adapter is compact and straightforward to install. A minimum working temperature rating of -65°F supports use in cold-climate or low-temperature process applications.

SKU: IG69X5X4

Supplier Part Number (MPN): 69X5X4

Specifications

Application Instrumentation, hydraulic and pneumatic systems.	Certifications SAE 060202BA	Drop Dimension 0.84	End Gender 1 13554	End Gender 2 13555	End Size 1 0.25	End Size 2 0.25	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.56	ICC Elbow Adapters	Item Type NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.58	Sub Brand None	Supplier Part Number 69X5X4	Product Weight 0.08 lbs

Product Questions & Answers (1)

Question by: Rex S on Nov 24, 2025, 8:49 AM

What size are the ends on this thing? I need to make sure it fits right with my setup.

Answer by: Customer Support on Nov 26, 2025, 6:15 AM

This elbow adapter has a 1/4 in. NPTF male thread on one end and a 1/4 in. female line/hose/tube connection on the other, making it suitable for connections where you need to change direction.
