Danfoss / Eaton Coupling

Description & Features

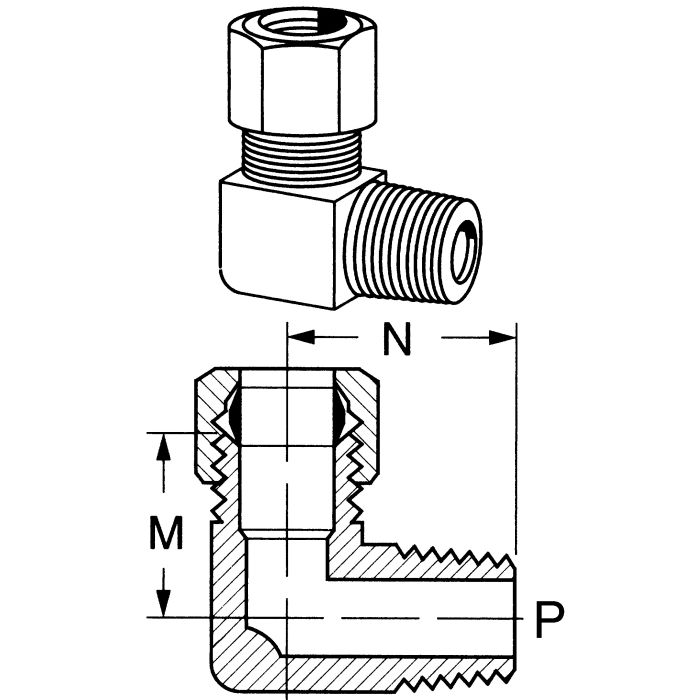

Constructed from brass, this 90° elbow adapter connects 1/8 in. NPTF male threads to a 1/8 in. female line/hose/tube end, making it well suited for instrumentation, hydraulic, and pneumatic systems where a right-angle transition is required. The Danfoss / Eaton Coupling carries SAE 060202BA certification and is rated for operating pressures above SAE standards, offering reliable performance in demanding fluid power applications.

Dura-Kote plating provides corrosion resistance across a broad service range, with a minimum working temperature of -65°F. The compact brass body measures 0.63 in. across the hex, and the 0.69 in. drop dimension suits tight routing conditions. With hundreds of available styles in this product line, integrating the correct configuration into an existing system is straightforward.

SKU: IG69X6X2

Supplier Part Number (MPN): 69X6X2

Specifications

Application Instrumentation, hydraulic and pneumatic systems.	Certifications SAE 060202BA	Drop Dimension 0.69	End Gender 1 13554	End Gender 2 13555	End Size 1 0.13	End Size 2 0.13	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Design flexibility with hundreds of styles to choose from\|Higher operating pressures above SAE standards	Hex Size 2 0.63	ICC Elbow Adapters	Item Type NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter	Language English	Minimum Working Temperature -65	Net Pack Quantity Units EA	NMFC 60	Product Material Brass	Product Width 0.63	Sub Brand None	Supplier Part Number 69X6X2	Product Weight 0.07 lbs

Product Questions & Answers (1)

Question by: Rod R on Aug 4, 2025, 6:26 PM

What kind of setups is this elbow fitting good for?

Answer by: Customer Support on Aug 6, 2025, 6:05 PM

It's well-suited for instrumentation, hydraulic, and pneumatic systems where you need to make a 90-degree turn in your lines.
