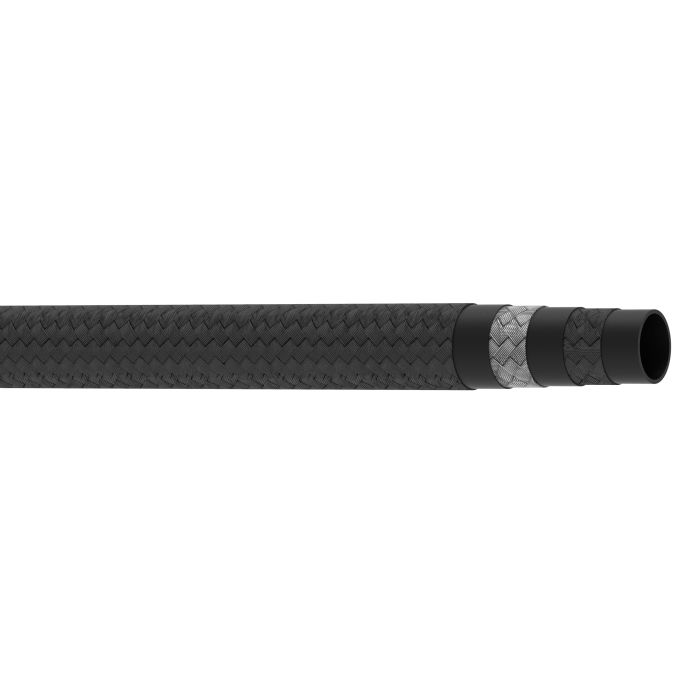

main product photo

WEATHERHEAD H069 Truck Hose

Ask A Question

Description & Features

The WEATHERHEAD H069 Truck Hose is a robust and versatile solution for hydraulics air and lubricating oil applications. Its highly abrasion-resistant cover and superior temperature resistance make it reliable in demanding conditions.

This truck hose features a 3-braid construction with a polyester cover and nitrile tube material. Certified under SAE 100R5 SAE J1402 Type-2 and ABS standards it meets DOT AII compliance. The hose is conductive and offers a minimum bend radius of 5.5 inches.

The product is black in color with a 0.92-inch width and designed without adjustable ends. Qualified hose fittings include 069 E 069 D and 247 N. It has passed 150 000 impulse cycles ensuring extended service life.

Suitable for a range of fuel options the WEATHERHEAD H069 Truck Hose minimizes the need for multiple hoses. Its premium abrasion resistance and proven reliability enhance performance in industrial environments.

Supplier Part Number: H06910-250R

Specifications

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number C1HA80
Application
Hydraulics, air and lubricating oil.
Certifications
SAE 100R5|SAE J1402 Type-2|ABS
Color
Black
Compliances
DOT AII
Conductivity
30
Construction
3 Braid
Cover Material
Polyester
Dash Size
-10
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
Features
Highly abrasion resistant cover|Small number of hoses for many fuel options|Proven reliability with high temperature resistance
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
150000 cycle
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
5.50
Minimum Bend Radius
5.5
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.92
Qualified Hose Fittings
069 E, 069 D, 247 N
Reinforcement Material
Polyester and Wire
Sub Brand
Weatherhead
Supplier Part Number
H06910-250R
Tube Material
Nitrile
Product Weight
0.36 lbs

Related Documents

Product Questions & Answers (2)

Question by: Jean M on Mar 6, 2026, 9:16 AM
got a tight spot to route this line, what’s the smallest bend it’ll handle without kinkin up
Answer by: Customer Support on Mar 7, 2026, 8:51 PM
For routing, the minimum bend radius on the H069 Truck Hose is 5.5 inches, so you will want to keep your bends at or above that to avoid kinking.
Question by: Billy M on Jun 10, 2025, 9:29 PM
Reckon this hose'll hold up okay in a hydraulics system on a farm tractor?
Answer by: Customer Support on Jun 12, 2025, 8:25 AM
Designed for hydraulics, air, and lubricating oil applications, the Weatherhead H069 is a strong choice. It's got a premium abrasion-resistant cover and can handle high temperatures, which is good for tough environments.
