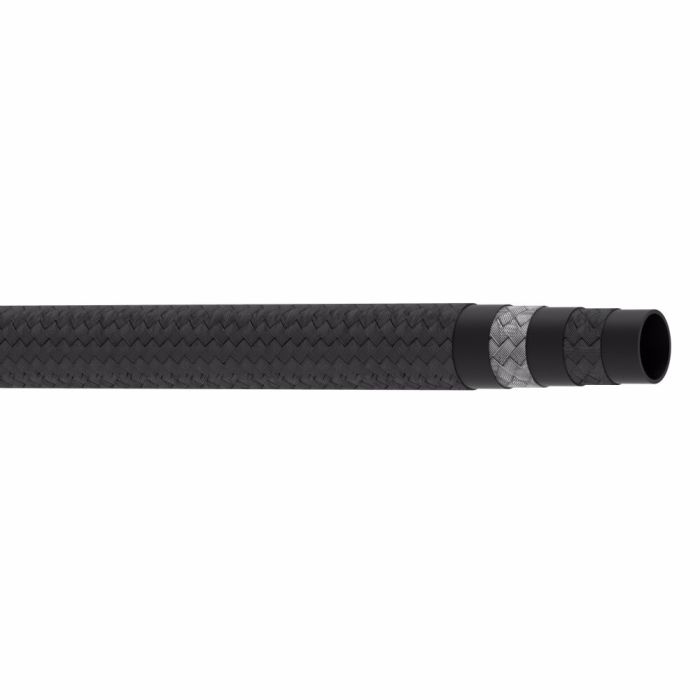

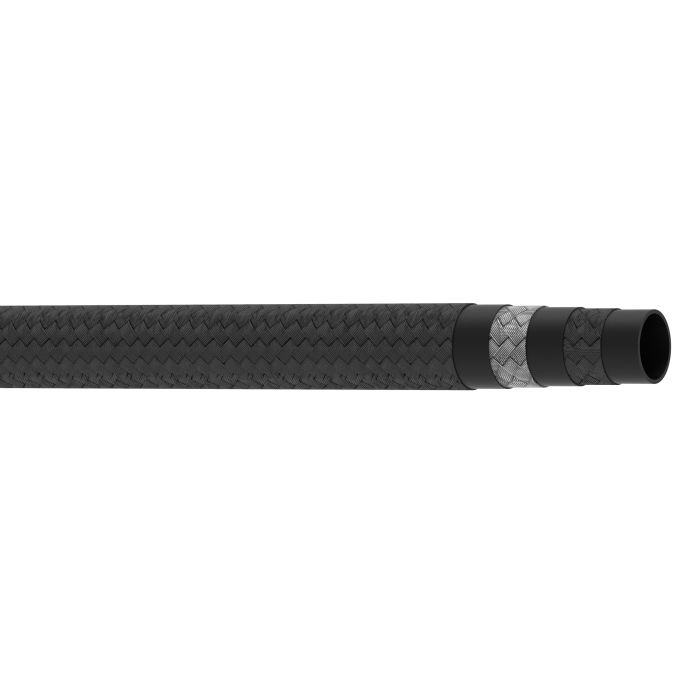

Weatherhead H069 TRUCK Hose

Description & Features

Rated for hydraulic, air, and lubricating oil service, this -12 dash size hose is built with a nitrile tube, polyester and wire three-braid reinforcement, and a premium abrasion-resistant polyester cover. The Weatherhead H069 Truck Hose is certified to SAE 100R5, SAE J1402 Type-2, and ABS standards, with full DOT All compliance for demanding truck and mobile equipment applications.

Conductive construction and a rated impulse cycle life of 150,000 cycles support reliable performance across a wide temperature range, with a minimum working temperature of -40°F. A minimum bend radius of 6.5 inches and compatibility with qualified fittings in the 069 E, 069 D, and 247 N series make it a practical choice across multiple fuel and fluid handling configurations.

SKU: IGH06912-250R

Supplier Part Number (MPN): H06912-250R

Alternate Part Numbers: C1JH98

Specifications

Abrasion Resistance Standard	Conditional Temp Range -40 to 212 deg F Synthetic	Cover Material Polyester	Dash Size 12	For Use With 069 E, 069 D and 247 N Series Reusable Hose Fittings	Hose Color Black	Hose Type Conductive, General-Purpose	Impulse Cycle 150000	Impulse Cycle Life 150000	Inside Diameter 5/8 in	Lay Line Style Ink Wheel	nmfc 70	Nominal Size 3/4 in	Package Form Reel	Reinforcement 1-Wire Braided Brass-Plated Steel Wire	Resistance Abrasion	Resistance Properties Abrasion	Segment Code A	Series H069 Series	Tube Material Nitrile

Product Questions & Answers (1)

Question by: Wes R on Mar 7, 2026, 7:37 PM

Does this hose work alright for oil lines on a semi?

Answer by: Customer Support on Mar 9, 2026, 5:07 PM

This Weatherhead H069 TRUCK hose is indeed rated for hydraulic, air, and lubricating oil service, making it suitable for truck applications.
