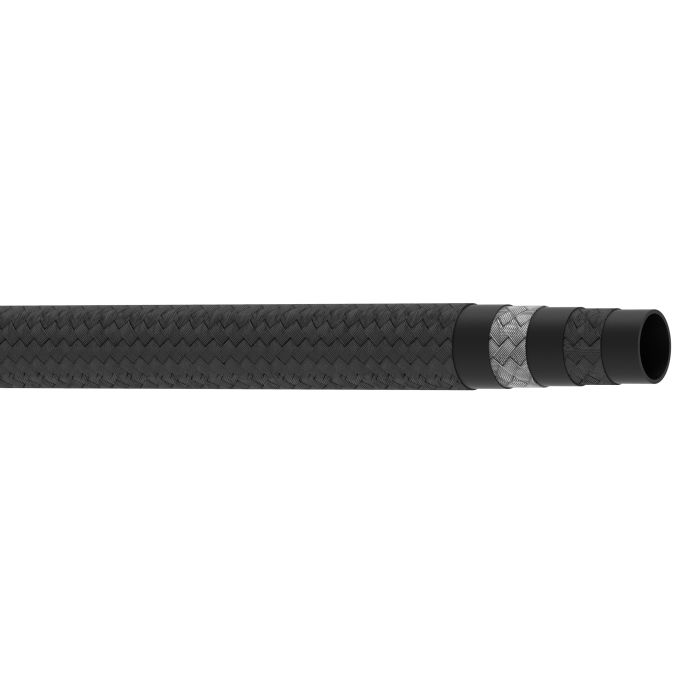

WEATHERHEAD H069 Truck Hose

Description & Features

The Eaton Weatherhead H069 truck hose is designed for hydraulic, air, and lubricating oil applications. Constructed with a 3-braid design and a durable polyester cover, this conductive hose offers premium abrasion resistance and proven reliability in high-temperature environments.

This Weatherhead H069 Truck Hose is compliant with DOT AII standards and certified to SAE J1402 Type-2, ABS, and SAE 100R5. It features a nitrile tube material, polyester and wire reinforcement, and a minimum bend radius of 10.5 inches. This -24 dash size hose is marked with an ink jet lay line style.

SKU: IGH06924

Supplier Part Number (MPN): H06924

Alternate Part Numbers: C1HA83

Specifications

Abrasion Resistance Standard	Color Black	Conditional Temp Range -40 to 212 deg F Synthetic	Construction 1-Wire Braided	Cover Material Polyester	Dash Size 24	For Use With 069 E, 069 D and 247 N Series Reusable Hose Fittings	Hose Color Black	Hose Type Conductive	Impulse Cycle 150000	Impulse Cycle Life 150000	Inside Diameter 1.38 in	Lay Line Style Ink Wheel	nmfc 70	Package Form Bulk	Qualified Hose Fittings Reusable	Reinforcement 1-Wire Braided Brass-Plated Steel Wire	Reinforcement Material Brass-Plated Steel Wire	Resistance Abrasion	Resistance Properties Abrasion	Segment Code A	Series H069 Series	Tube Material Nitrile

Product Questions & Answers (1)

Question by: Judy S on Oct 4, 2025, 3:09 PM

got a tight spot to snake this hose through. whats the minimum bend radius on the H06924

Answer by: Customer Support on Oct 6, 2025, 6:35 AM

For routing, the minimum bend radius is 10.5 inches, so you will want to keep your bends at or above that to avoid kinking the hose.
