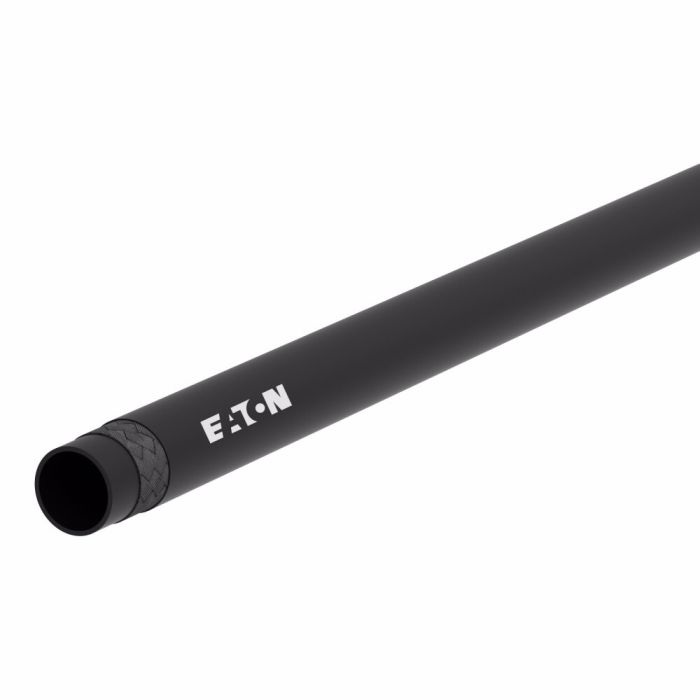

WEATHERHEAD H101 Hose. General Purpose

Ask A Question

Description & Features

The Weatherhead H101 Hose is engineered for air and multi-purpose applications ensuring maximum durability under harsh operating conditions. This hose features a black chloroprene rubber cover and a nitrile tube material enhancing its performance and standard abrasion resistance.

Designed with a robust construction the hose can withstand high pressures extending its life span. It is built with a 1-ply braid reinforcement material made from polyester providing reliable strength and flexibility. The minimum bend radius of 3 inches contributes further to its versatility.

With a -40 minimum working temperature and compliance with MSHA approvals this hose is suitable for demanding environments. The ink jet lay line style offers a clear and lasting identification mark.

Brand: Danfoss (IGS)

Supplier Part Number: H10105-250R

MPN: EAR99

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number C1HA93
Application
Air and multi purpose.
Color
Black
Compliances
MSHA Approved
Conductivity
30
Construction
1 Ply Braid
Cover Material
Chloroprene Rubber
Dash Size
-5
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
3
Minimum Bend Radius
3
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.56
Qualified Hose Fittings
100 B
Reinforcement Material
Polyester
Sub Brand
Weatherhead
Supplier Part Number
H10105-250R
Tube Material
Nitrile
Product Weight
27.50 lbs

Related Documents

Product Questions & Answers (2)

Question by: Ray C on Nov 23, 2025, 4:59 PM
Running air lines in a shop that gets pretty brutal in winter, how cold can this hose handle before it starts givin me trouble?
Answer by: Customer Support on Nov 24, 2025, 8:22 PM
Rated down to -40 degrees minimum working temperature, so even in a hard freeze it stays flexible and functional. The nitrile tube and chloroprene rubber cover hold up well in cold conditions without cracking or stiffening the way cheaper hose materials tend to do.
Question by: Rusty S on May 10, 2025, 7:31 PM
What kind of stuff is this hose good for handling?
Answer by: Customer Support on May 12, 2025, 7:05 AM
This Weatherhead H101 hose is engineered for air and other general-purpose applications.
