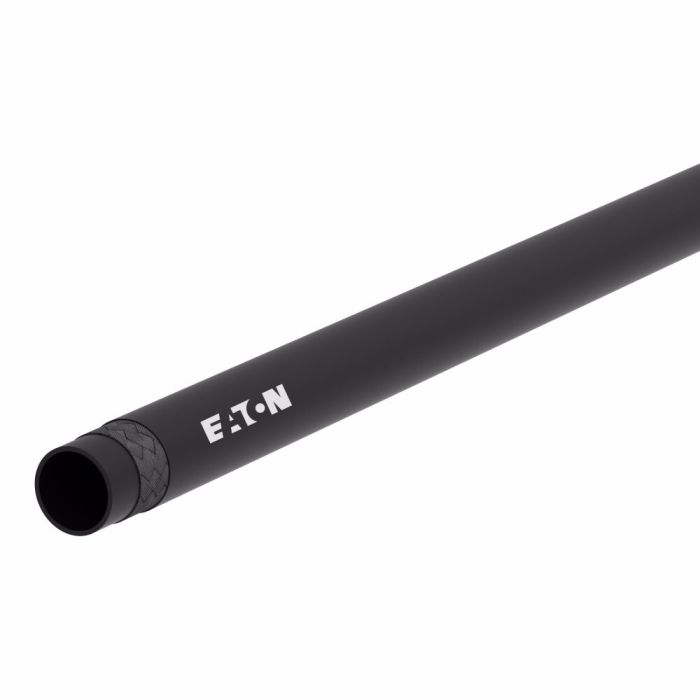

WEATHERHEAD H101 Hose. General Purpose

Ask A Question

Description & Features

The Eaton Weatherhead H101 hose is a general purpose, black chloroprene rubber covered hose featuring a 1-ply braided polyester reinforcement.

Designed for air and multi-purpose applications, the Weatherhead H101 Hose is MSHA approved and features standard abrasion resistance and conductive properties. It is system engineered to extend hose assembly life and provide maximum durability in harsh operating conditions. Its robust construction is able to withstand high pressures, with a minimum bend radius of 3 inches and a minimum working temperature of -40 degrees.

SKU: IGH10106-250R

Supplier Part Number (MPN): H10106-250R

Alternate Part Numbers: C1JJ14

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number C1JJ14
Application
Air and multi purpose.
Color
Black
Compliances
MSHA Approved
Conductivity
30
Construction
1 Ply Braid
Cover Material
Chloroprene Rubber
Dash Size
-6
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
3
Minimum Bend Radius
3
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.69
Qualified Hose Fittings
100 B
Reinforcement Material
Polyester
Sub Brand
Weatherhead
Supplier Part Number
H10106-250R
Tube Material
Nitrile
Product Weight
32.50 lbs

Related Documents

Product Questions & Answers (1)

Question by: Lynn B on Feb 23, 2026, 12:06 PM
got a tight spot to route this hose, what’s the minimum bend it’ll handle?
Answer by: Customer Support on Feb 24, 2026, 5:30 PM
Minimum bend radius is 3 inches, so plan your routing so the hose never has to bend tighter than that.
