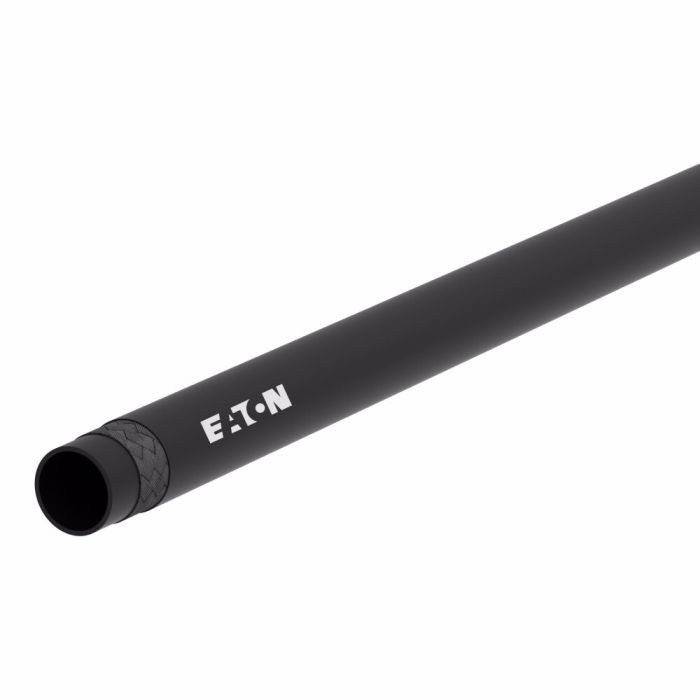

WEATHERHEAD H101 Hose. General Purpose

Ask A Question

Description & Features

The WEATHERHEAD H101 Hose is a robust solution designed for air and multi-purpose applications. It is constructed with a 1 Ply Braid for maximum durability and high-pressure resistance. The hose features a Chloroprene Rubber cover material and a Nitrile tube material to further ensure its reliable performance under varying conditions.

This hose is engineered to withstand harsh environments and has standard abrasion resistance. The minimum bend radius of 5 and minimum working temperature of -40 expand its usability across various industrial needs. Qualified with Hose Fittings 100 B the WEATHERHEAD H101 Hose offers secure and stable connections.

Additionally it is conductive and complies with MSHA standards guaranteeing safety and efficiency in demanding settings. The polyester reinforcement material adds another layer of reliability to its overall construction.

Supplier Part Number: H10108-250R

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number C1HS38
Application
Air and multi purpose.
Color
Black
Compliances
MSHA Approved
Conductivity
30
Construction
1 Ply Braid
Cover Material
Chloroprene Rubber
Dash Size
-8
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Jet
Minimum Bend Radius
5
Minimum Bend Radius
5
Minimum Working Temperature
-40
Net Pack Quantity Units
FT
NMFC
70
Product Width
0.78
Qualified Hose Fittings
100 B
Reinforcement Material
Polyester
Sub Brand
Weatherhead
Supplier Part Number
H10108-250R
Tube Material
Nitrile
Product Weight
37.50 lbs

Related Documents

Product Questions & Answers (2)

Question by: Marvin M on Mar 17, 2026, 9:41 AM
got a hose that’s gonna see air and some general shop use, will this H101 hold up decent or is it kinda light duty
Answer by: Customer Support on Mar 19, 2026, 6:19 AM
For air and multi purpose service, the H101 is built with a 1 ply braid construction and polyester reinforcement, plus a chloroprene rubber cover with standard abrasion resistance. It’s meant for harsh operating conditions and higher pressure work compared to a basic light duty air hose.
Question by: Donna Y on Jul 18, 2025, 10:35 AM
Can this hose handle getting bent a good bit without messing it up?
Answer by: Customer Support on Jul 20, 2025, 6:44 AM
It has a minimum bend radius of 5 inches, so avoid bending it tighter than that to prevent damage and maintain its performance.
