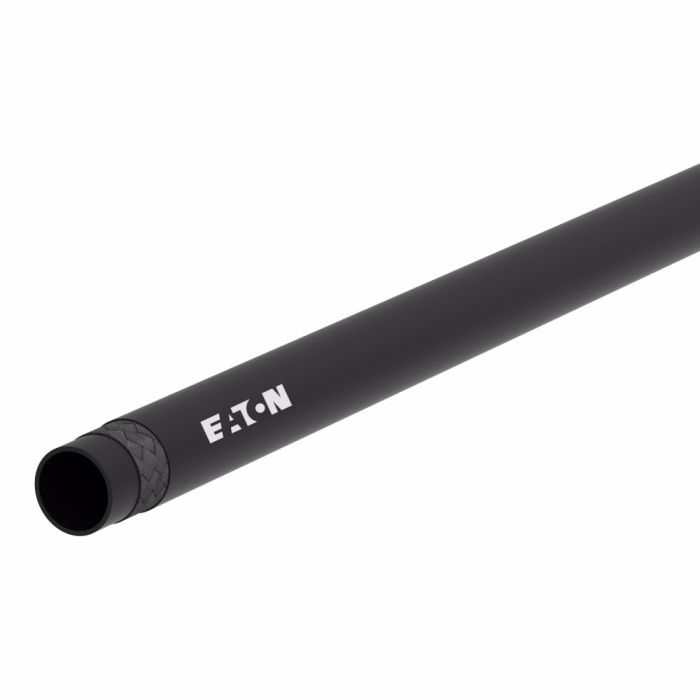

WEATHERHEAD H101 Hose. General Purpose

Description & Features

The Weatherhead H101 Hose offers maximum durability under harsh operating conditions engineered to extend hose assembly life. Featuring a robust construction capable of withstanding high pressures this hose is suitable for air and multi-purpose applications.

Constructed with a single ply braid and reinforced with polyester the hose includes a cover made from chloroprene rubber providing standard abrasion resistance. The conductive nature of the hose ensures safety and reliability in various industrial settings.

Additional features include a minimum bend radius of 7 and a minimum working temperature of -40. The hose complies with MSHA standards and is identified by an ink jet lay line style. Qualified hose fittings for this product are 100 B.

** Supplier Part Number:** H10112-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HA95	Application Air and multi purpose.	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Chloroprene Rubber	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 7	Minimum Bend Radius 7	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.03	Qualified Hose Fittings 100 B	Reinforcement Material Polyester	Sub Brand Weatherhead	Supplier Part Number H10112-250R	Tube Material Nitrile	Product Weight 65.00 lbs

Product Questions & Answers (2)

Question by: Cheryl A on Feb 13, 2026, 9:21 PM

what's the lowest temp this hose can handle? got equipment running through some pretty cold winters and need to know it won't get brittle on me

Answer by: Customer Support on Feb 15, 2026, 12:52 PM

Rated down to -40 degrees, so cold weather use aren't a concern with this one. The chloroprene rubber cover holds up well at those temps, and the nitrile tube material stays flexible enough to keep things moving even when it gets real nasty outside.

Question by: Johnny C on Mar 19, 2026, 8:02 PM

got a tight spot to route hose, how sharp can this H101 bend without kinkin it

Answer by: Customer Support on Mar 21, 2026, 6:57 AM

For routing, the minimum bend radius on the Weatherhead H101 is 7. Staying at or above a 7 inch bend radius helps keep the hose from being forced into an overly tight curve.
