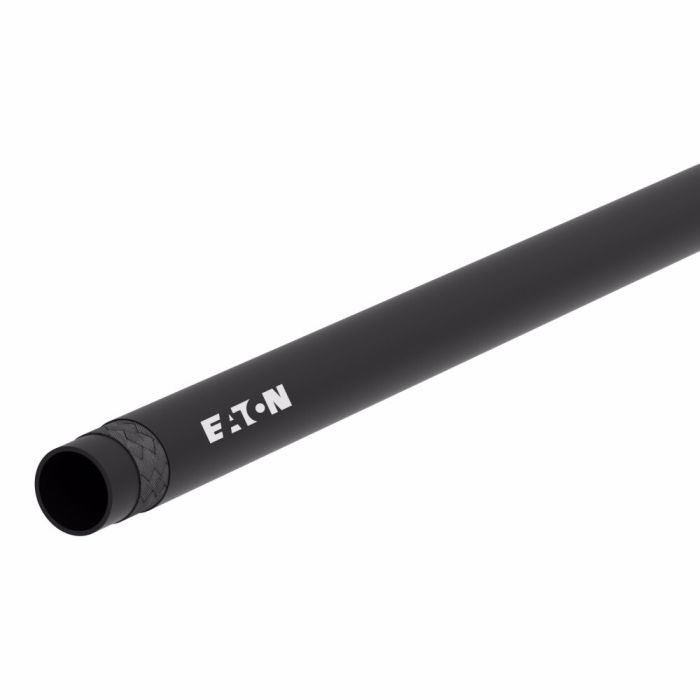

Weatherhead H104 Hose SAE 100R1

Description & Features

SAE 100R1AT certified, the Eaton Weatherhead H104 Hose is designed for hydraulic applications requiring flexibility and durability. Constructed with a 1-ply braid of steel reinforcement and a neoprene cover, this -6 dash size hose ensures reliable performance in demanding environments.

The Weatherhead H104 Hose is compatible with various qualified hose fittings, including U, S, 104 N, and Z series. Suitable for fuel and lube service applications, this conductive hose maintains its flexibility with a minimum bend radius of 5 inches and can withstand temperatures as low as -40 degrees Fahrenheit.

SKU: IGH10406-500R

Supplier Part Number (MPN): H10406-500R

Alternate Part Numbers: C1HB12

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB12	Certifications SAE 100R1AT\|ABS\|SAE J1942-Fuel and Lube Service	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Neoprene	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 5	Minimum Bend Radius 5	Minimum Working Temperature -40	NMFC 70	Product Width 0.72	Qualified Hose Fittings U, S, 104 N, Z	Reinforcement Material Steel	Supplier Part Number H10406-500R	Tube Material Nitrile	Product Weight 0.23 lbs

Product Questions & Answers (1)

Question by: Judy S on Apr 20, 2025, 2:05 PM

Does this hose work for fuel and lube lines, or is it strictly hydraulic fluid only?

Answer by: Customer Support on Apr 22, 2025, 12:57 PM

Fuel and lube service is actually one of its listed applications. It carries SAE J1942 certification for that use, so running it on fuel or lube lines is fully within spec. The nitrile tube material handles those fluids well, and the conductive construction helps manage static buildup in those environments too.
