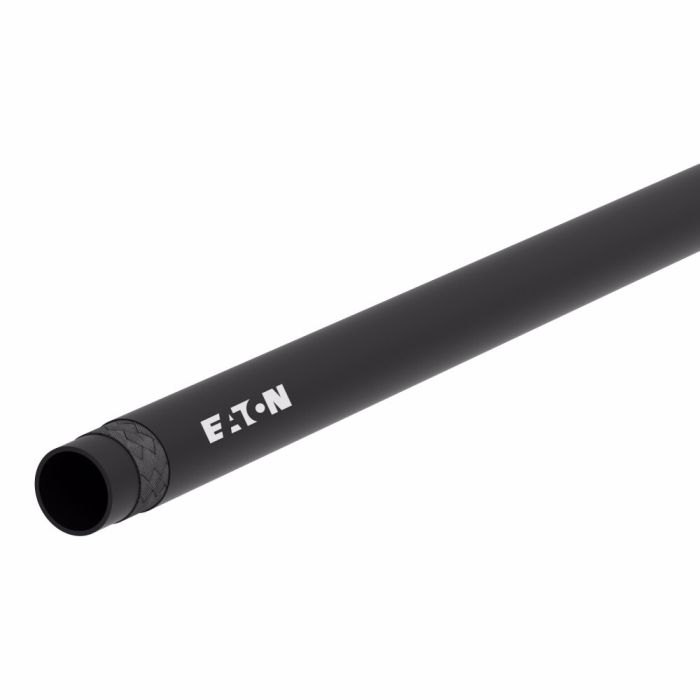

main product photo

Weatherhead H104 Hose SAE 100R1

Ask A Question

Description & Features

The Weatherhead H104 Hose SAE 100R1 is a high-quality hose designed for industrial applications. Constructed with a 1-ply steel braid reinforcement and a neoprene cover it ensures durability and efficient performance. The inner tube of nitrile provides excellent resistance to oils and fuels making it suitable for a range of uses.

Meeting SAE 100R1AT ABS and SAE J1942-Fuel and Lube Service certifications this hose guarantees compliance with industry standards. Its conductivity ensures safe use in various environments. The hose is also MSHA approved further assuring its reliability and safety in demanding conditions.

With a -8 dash size and a product width of 0.85 inches this hose offers versatility in application. Despite its robust construction it maintains a minimum bend radius of 7 inches allowing for flexible installation without compromising integrity. Rated for a minimum working temperature of -40 degrees it is designed to perform in extreme conditions.

The hose is compatible with U S 104 N and Z Series qualified fittings providing a secure and dependable connection.

Supplier Part Number: H10408-500R

MPN: H10408-500R

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number C1HB14
Certifications
SAE 100R1AT|ABS|SAE J1942-Fuel and Lube Service
Color
Black
Compliances
MSHA Approved
Conductivity
30
Construction
1 Ply Braid
Cover Material
Neoprene
Dash Size
-8
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
ICC
Hoses and Flexible Tubes
Language
English
Minimum Bend Radius
7
Minimum Bend Radius
7
Minimum Working Temperature
-40
NMFC
70
Product Width
0.85
Qualified Hose Fittings
U, S, 104 N, Z Series
Reinforcement Material
Steel
Supplier Part Number
H10408-500R
Tube Material
Nitrile
Product Weight
0.29 lbs

Related Documents

Product Questions & Answers (2)

Question by: Duane W on Dec 6, 2025, 9:44 AM
hose says it's rated down to -40 degrees -- does that mean it'll hold up running hydraulic oil in real cold weather without getting stiff and cracking on me?
Answer by: Customer Support on Dec 8, 2025, 9:01 AM
Cold weather performance is one of the stronger points of this hose. The nitrile inner tube handles petroleum-based hydraulic oils well, and the -40 degree minimum working temperature means it stays functional in pretty serious winter conditions without the tube getting brittle or the cover cracking up on you. The neoprene outer cover holds up too, so you're not looking at a hose that's going to give you trouble just because temps dropped overnight.
Question by: Bobby C on Mar 9, 2026, 11:46 AM
got a tight spot to snake this hose through. what’s the minimum bend radius on the H104 -8?
Answer by: Customer Support on Mar 10, 2026, 4:36 PM
For the -8 dash size H104, the minimum bend radius is 7 inches, so you will want to keep your routing at or above that to avoid kinking or stressing the hose.
