WEATHERHEAD H115 Hose

Description & Features

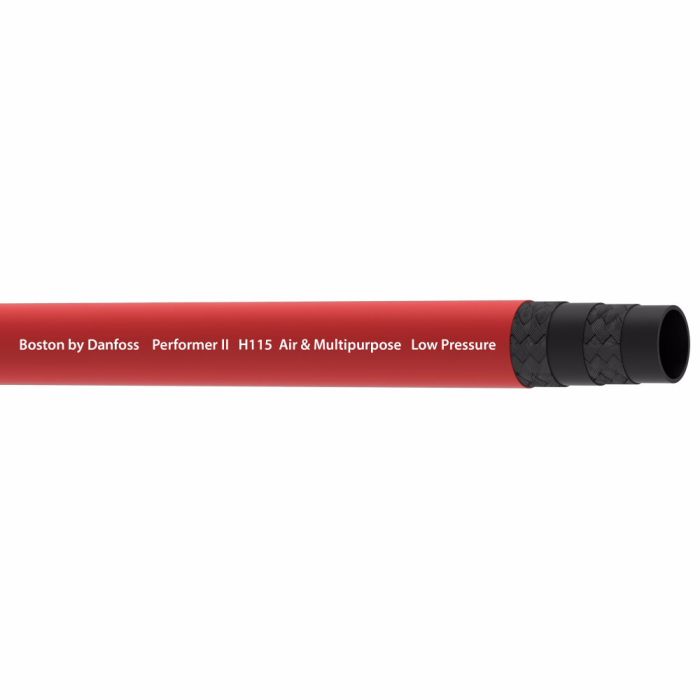

The Eaton Weatherhead H115 Hose is designed for air and multipurpose applications. This hose features a vinyl nitrile cover material and a nitrile tube material. It is constructed with a 2-ply braid reinforcement material composed of polyester. The hose is conductive and offers standard abrasion resistance.

The WEATHERHEAD H115 Hose is red and features ink jet lay line style. It has a -4 dash size with a minimum bend radius of 3 inches and can operate in temperatures as low as -40 degrees Fahrenheit. It is compatible with qualified hose fittings Z and 430 U.

SKU: IGH11504-550R

Supplier Part Number (MPN): H11504-550R

Alternate Part Numbers: C1HB18

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB18	Application Air and multi purpose.	Color Red	Conductivity 30	Construction 2-ply braid	Cover Material Vinyl Nitrile	Dash Size -4	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Product Width 0.59	Qualified Hose Fittings Z, 430 U	Reinforcement Material Polyester	Sub Brand None	Supplier Part Number H11504-550R	Tube Material Nitrile	Product Weight 82.50 lbs

Product Questions & Answers (2)

Question by: Tommy E on Apr 24, 2025, 8:47 AM

need a small red air hose that’ll bend around tight spots, is the H115 in -4 gonna fight me?

Answer by: Customer Support on Apr 26, 2025, 7:31 AM

For tight routing, the -4 dash H115 is rated with a 3 inch minimum bend radius, so it is meant to handle smaller turns without kinking as quickly as stiffer hose styles.

Question by: Larry C on Apr 23, 2025, 1:32 PM

hose says it works down to -40 degrees -- is that fahrenheit or celsius? got some pretty brutal winters and need something that wont crack up on me

Answer by: Customer Support on Apr 24, 2025, 5:21 PM

That rating is in Fahrenheit, so you're good to go for cold-weather operation. The nitrile tube and vinyl nitrile cover hold up well at those low temps without getting brittle on you. For most harsh winter conditions in the field, -40F gives you solid headroom.
