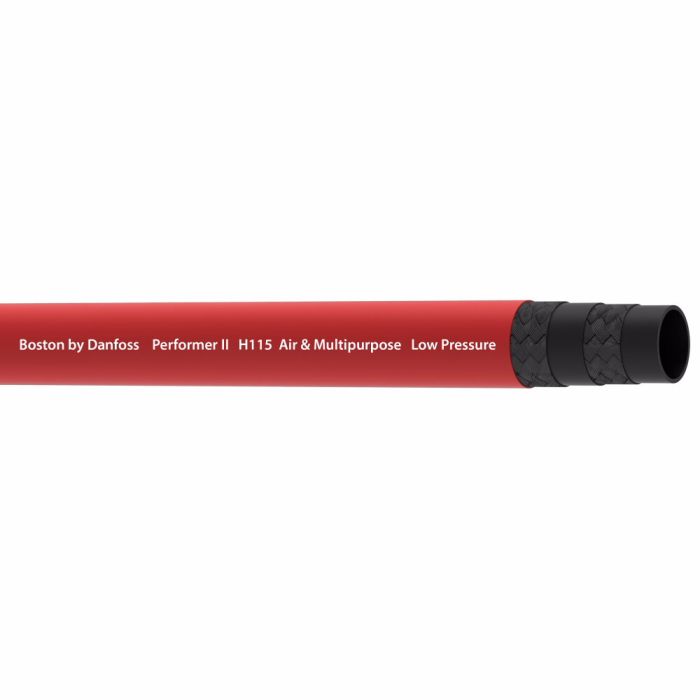

WEATHERHEAD H115 Hose

Description & Features

The WEATHERHEAD H115 Hose developed by Danfoss has been the industry leader since 1870 ensuring enhanced safety and reliability. Constructed with a 2-ply braid reinforcement this hose supports air and multi-purpose applications. The cover is made from durable vinyl nitrile providing standard abrasion resistance.

Engineered for conductive operations the hose features a nitrile tube material and a minimum bend radius of 7.25 inches accommodating flexible installation needs. The distinctive red color aids in easy identification and application.

With a product width of 1.44 inches WEATHERHEAD H115 Hose delivers reliable performance where robustness and resilience are essential. The applicable qualified hose fittings include the Z and 430 U series.

Supplier Part Number: H11516

ECCN: EAR99

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB23	Application Air and multi purpose.	Color Red	Conductivity 30	Construction 2-ply braid	Cover Material Vinyl Nitrile	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 7.25	Minimum Bend Radius 7.25	Minimum Working Temperature -40	NMFC 70	Product Width 1.44	Qualified Hose Fittings Z, 430 U	Reinforcement Material Polyester	Sub Brand None	Supplier Part Number H11516	Tube Material Nitrile	Product Weight 31.00 lbs

Product Questions & Answers (3)

Question by: Howard A on Apr 16, 2025, 9:32 AM

Reckon this hose will hold up okay for running air tools in my shop?

Answer by: Customer Support on Apr 17, 2025, 12:06 PM

Designed with a 2-ply braid reinforcement and a vinyl nitrile cover, this hose should provide standard abrasion resistance suitable for air tool applications.

Question by: Ralph E on Aug 20, 2025, 1:23 PM

got a tight spot to route it, how bendy is that H11516 hose?

Answer by: Customer Support on Aug 22, 2025, 10:41 AM

For routing and install clearance, the minimum bend radius on the H11516 is 7.25 inches, so it needs about that much radius to make a turn without kinking.

Question by: Hugh P on Oct 29, 2025, 7:45 AM

hose is red, that on purpose or just how it comes? trying to figure out if itll be easy to tell apart from other lines we got running in the shop

Answer by: Customer Support on Oct 31, 2025, 6:10 AM

Red is the standard color for this hose, and yeah it does help a lot with identification when you've got multiple lines running close together. Makes it easier to sort out which is which at a glance without tracing the whole run.
