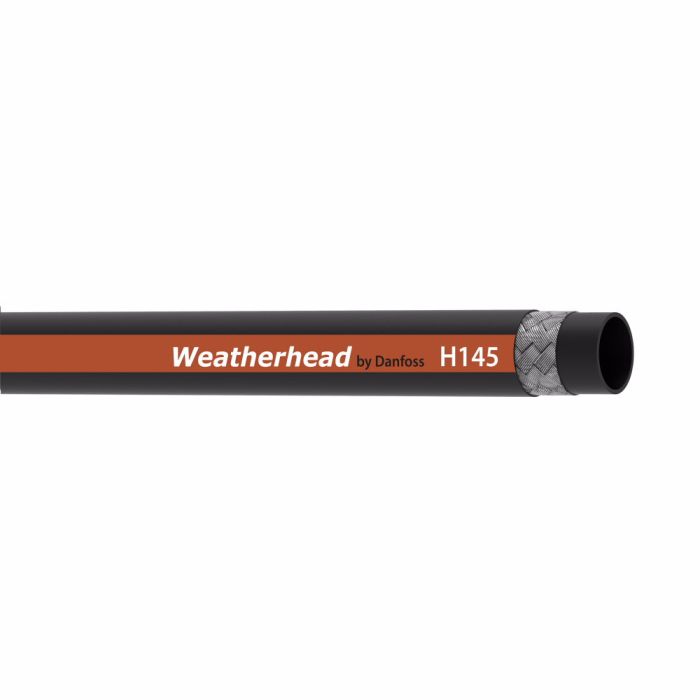

Weatherhead H145 Hydraulic Hose

Description & Features

The Weatherhead H145 Hydraulic Hose is a durable solution for construction applications, built with a robust 2-ply braid construction to withstand high pressures and harsh operating conditions. Its system-engineered design extends hose assembly life.

This hydraulic hose is constructed with a neoprene cover material and nitrile tube material. Meeting SAE 100R17 and SAE J1942/1 standards, this black hose is also MSHA approved.

Compatible with U, S, and Z qualified hose fittings, the Weatherhead H145 Hydraulic Hose features standard abrasion resistance. It has a minimum bend radius of 4.75 inches and a minimum working temperature of -40 degrees.

SKU: IGH14512

Supplier Part Number (MPN): H14512

Specifications

Abrasion Resistance 29	Application Construction.	Certifications SAE 100R17\|SAE J1942/1-Hydraulic only	Class WEB-ITEM	Color Black	Compliances MSHA Approved	Construction 2-ply braid	Cover Material Neoprene	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 4.75	Minimum Bend Radius 4.75	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.16	Qualified Hose Fittings U, S, Z	Reinforcement Material Wire	Supplier Part Number H14512	Tube Material Nitrile	Product Weight 0.54 lbs

Product Questions & Answers (1)

Question by: Scott M on Feb 15, 2026, 4:23 PM

What kind of fittings work with this hose? U and S, right?

Answer by: Customer Support on Feb 17, 2026, 3:00 PM

That's correct. This Weatherhead hydraulic hose is qualified to work with U, S, and Z fittings.
