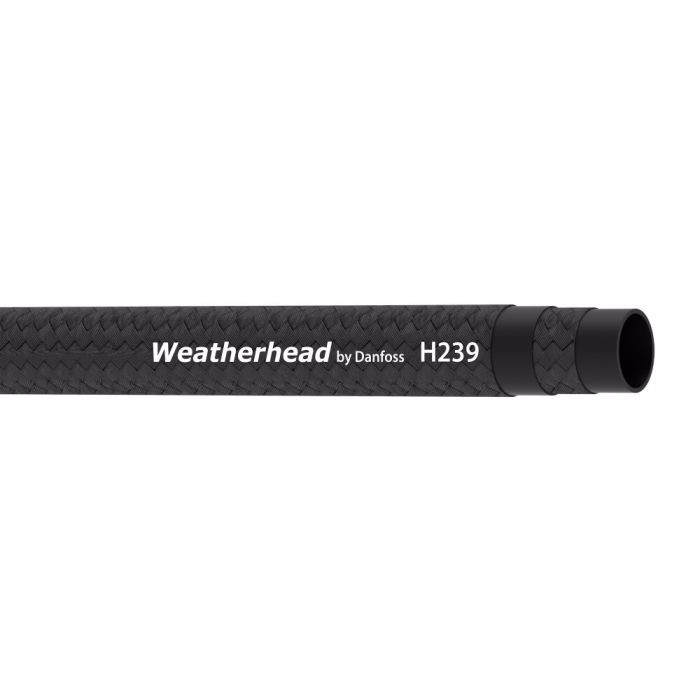

Weatherhead H239 TRUCK Hose

Description & Features

This Weatherhead H239 TRUCK Hose is suitable for air brake, fuel, lubricating oil, air, and water applications. Constructed with a CPE tube material and a polyester cover, this hose offers premium abrasion resistance. The 2-ply braid construction provides durability, while the conductive properties ensure safety.

The Weatherhead H239 TRUCK Hose meets SAE J1402 and DOT AII compliances. It is compatible with 247N, 229P, and 069E qualified hose fittings. It has a -8 dash size and a minimum bend radius of 2.31 inches.

SKU: IGH23908

Supplier Part Number (MPN): H23908

Specifications

Abrasion Resistance 28	Application Air brake, fuel and lubricating oils, air and water.	Certifications SAE J1402	Color Black	Compliances DOT AII	Conductivity 30	Construction 2-ply braid	Cover Material Polyester	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 2.31	Minimum Bend Radius 2.31	Product Width 0.75	Qualified Hose Fittings 247N, 229P, 069E	Reinforcement Material Polyester	Sub Brand Weatherhead	Supplier Part Number H23908	Tube Material CPE	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Dwight L on Jun 13, 2025, 6:59 PM

What kind of stuff can I run through this hose? Just want to make sure it's compatible with my needs.

Answer by: Customer Support on Jun 15, 2025, 10:00 AM

This Weatherhead hose is designed to handle air brake systems, fuel, lubricating oils, air, and water.
