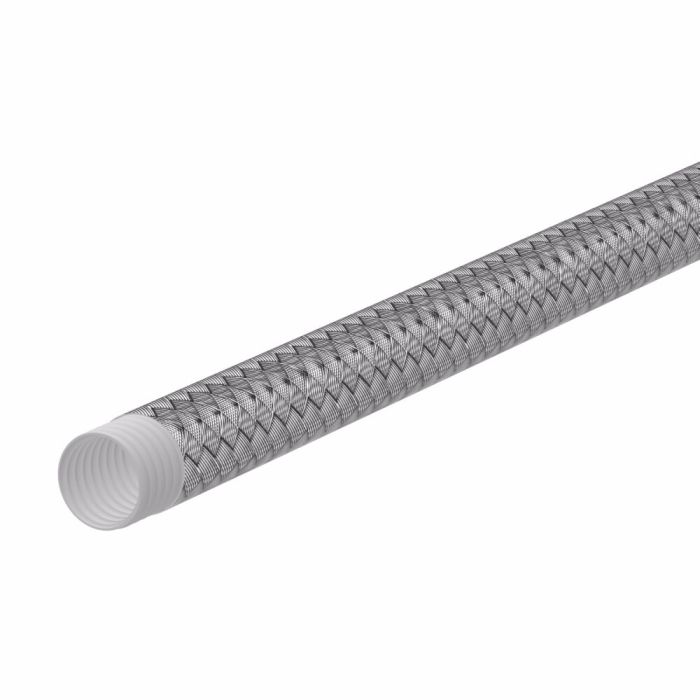

main product photo

WEATHERHEAD H243 Teflon Hose

Ask A Question

Description & Features

Constructed with an extruded Teflon tube and a braided stainless steel cover, this -4 dash size hose is built for demanding chemical, steam, and compressor discharge service. The WEATHERHEAD H243 Teflon Hose carries FDA approval, making it suitable for applications where material compliance is a requirement.

A minimum bend radius of 3 inches and a working temperature range starting at -65°F give this hose flexibility across a wide range of thermal environments. The stainless steel reinforcement provides premium abrasion resistance, and the PTFE tube material is impervious to degradation from virtually all chemical media. Compatible fittings are from the E Series. Not recommended for steam-to-cold water cycling applications.

SKU: IGH24304-100R

Supplier Part Number (MPN): H24304-100R

Specifications

Abrasion Resistance
28
Application
Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.
Color
Stainless Steel
Compliances
FDA Approved
Construction
Extruded with braided cover
Cover Material
Stainless Steel
Dash Size
-4
Features
Withstands vibration and impulsing|Impervious to degradation|Wide temperature range
ICC
Hoses and Flexible Tubes
Language
English
Minimum Bend Radius
3
Minimum Bend Radius
3
Minimum Working Temperature
-65
NMFC
70
Product Width
0.36
Qualified Hose Fittings
E Series
Reinforcement Material
Stainless Steel
Sub Brand
Weatherhead
Supplier Part Number
H24304-100R
Tube Material
Teflon
Product Weight
0.08 lbs

Related Documents

Product Questions & Answers (1)

Question by: Rusty W on Jun 28, 2025, 9:20 PM
Can this hose handle getting vibrated a lot without wearing out?
Answer by: Customer Support on Jun 30, 2025, 5:20 PM
This hose is designed to withstand vibration and impulsing, contributing to its durability in demanding applications.
