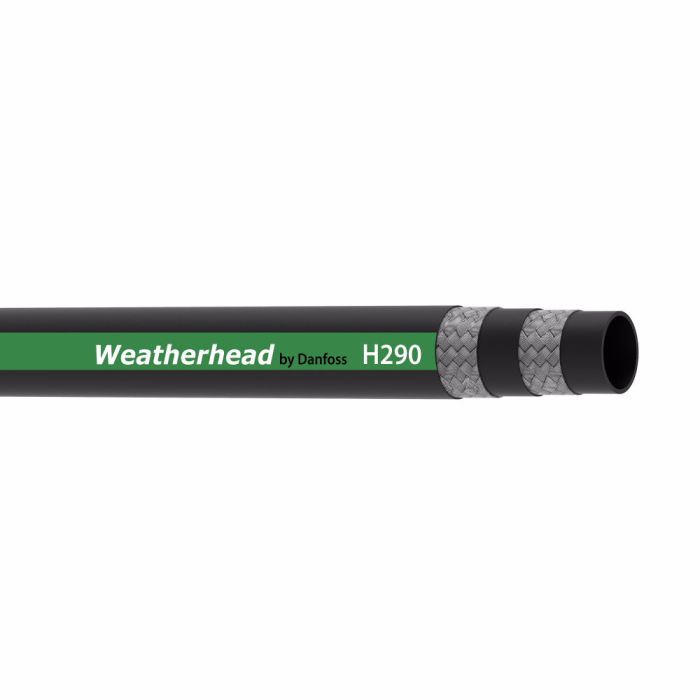

H290 HYDRAULIC HOSE 1

Description & Features

Designed for high-pressure hydraulic applications in construction equipment, the H290 Hydraulic Hose 1 is a 2-ply steel wire braided hose built to SAE 100R2AT Type S and EN853 2SN standards, with additional compliance to SAE J1942/1 and ISO 1436-1 Type 2SN.

The hose features a synthetic rubber inner tube paired with a PVC/nitrile blend cover, offering reliable fluid compatibility and standard abrasion resistance. At dash size -16, it carries a minimum bend radius of 12 inches and is rated for a 200,000-cycle impulse life, making it well-suited for demanding mobile and industrial hydraulic circuits. The embossed lay line and MSHA approval support both identification and compliance requirements in regulated work environments.

Operating temperatures start as low as -40°F, supporting year-round use in cold-climate field conditions. Qualified fittings are designated as Z-series, and the hose is sourced from Danfoss Power Solutions.

SKU: IGH29016

Supplier Part Number (MPN): H29016

Specifications

Abrasion Resistance 29	Application Construction.	Certifications SAE J1942/1\|EN853 2SN\|SAE 100R2AT Type S\|ISO 1436-1 Type 2SN	Class WEB-ITEM	Color Black	Compliances MSHA Approved	Construction 2-ply braid	Cover Material PVC/nitrile blend	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 200000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 12	Minimum Bend Radius 12	Minimum Working Temperature -40	Product Width 1.50	Qualified Hose Fittings Z	Reinforcement Material Steel Wire	Supplier Part Number H29016	Tube Material Synthetic Rubber	Product Weight 0.90 lbs

Product Questions & Answers (1)

Question by: Dwayne C on Feb 10, 2026, 4:50 PM

What kind of machinery is this hose typically used on?

Answer by: Customer Support on Feb 12, 2026, 6:56 AM

Commonly found in the construction industry, this hose is designed for hydraulic applications in construction equipment.
