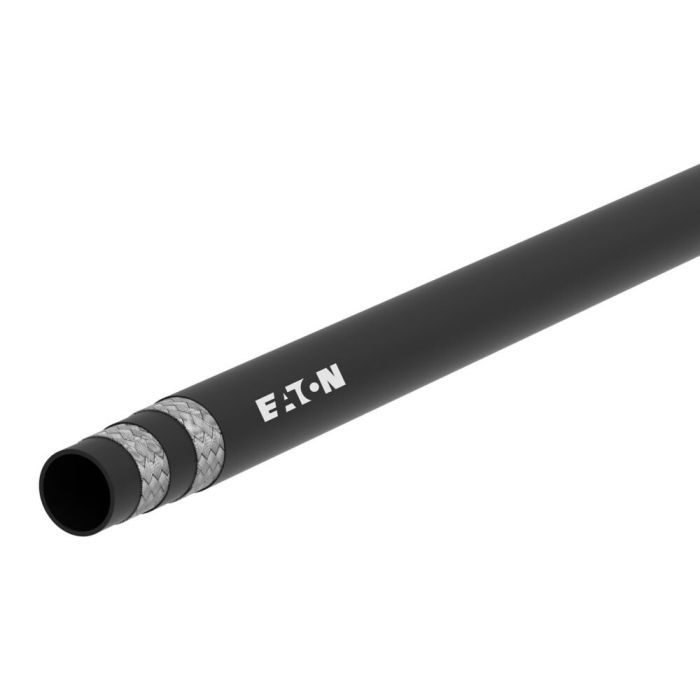

main product photo

WEATHERHEAD H425 Hydraulic Hose. SAE100R2

Ask A Question

Description & Features

The WEATHERHEAD H425 Hydraulic Hose. SAE100R2 from the Danfoss (IGS) brand offers reliable and efficient hydraulic performance with its robust construction.

Its 2-ply braid steel reinforcement ensures high durability and strength compliant with ABS SAE 100R2 and SAE J1942/1 standards. Featuring a neoprene cover material the hose provides moderate abrasion resistance suitable for demanding environments.

This hose is MSHA approved with an impulse cycle life of 200000 cycles guaranteeing a long operational lifespan. It is qualified to work with U S 425 N and Z hose fittings.

With a minimum bend radius of 4 inches and a minimum working temperature of -40F this hose demonstrates flexibility and resilience under varying conditions. The tube material is made of nitrile contributing to its overall reliability.

The black hose has a product width of 0.59 inches and adheres to the NMFC classification of 70.

Supplier Part Number: H42504-250R

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number C1HB35
Certifications
ABS|SAE 100R2|SAE J1942/1
Color
Black
Compliances
MSHA Approved
Construction
2-ply braid
Cover Material
Neoprene
Dash Size
-4
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
200000 cycle
Language
English
Minimum Bend Radius
4
Minimum Bend Radius
4
Minimum Working Temperature
-40
NMFC
70
Product Width
0.59
Qualified Hose Fittings
U, S, 425 N, Z
Reinforcement Material
Steel
Supplier Part Number
H42504-250R
Tube Material
Nitrile
Product Weight
70.00 lbs

Related Documents

Product Questions & Answers (1)

Question by: Diane M on Jun 7, 2025, 5:01 PM
Does this hose work down to really cold temps? We run equipment through the winter and need something that won't get brittle on us.
Answer by: Customer Support on Jun 9, 2025, 6:39 AM
Rated for a minimum working temperature of -40 degrees F, so cold weather operation shouldn't be a problem. The nitrile tube and neoprene cover hold up well in those conditions without going stiff or cracking under normal use.
