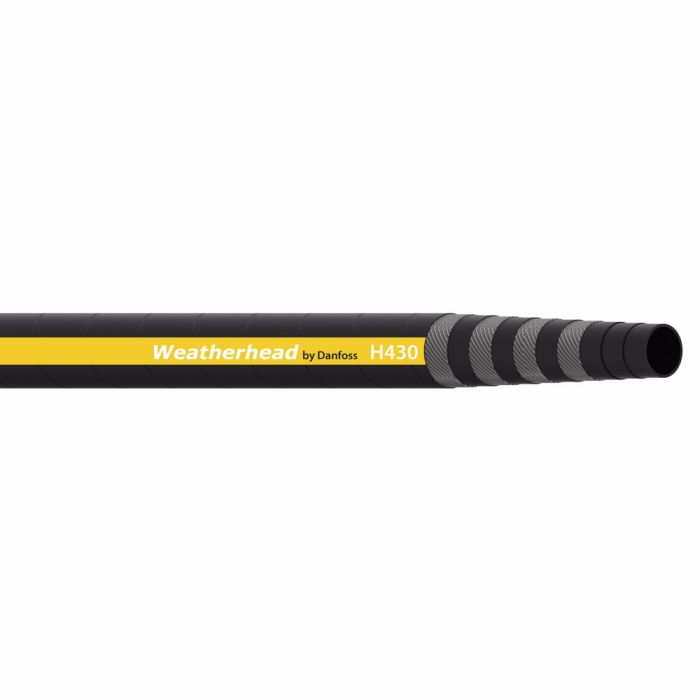

WEATHERHEAD H430 Hydraulic Hose. 100R12

Description & Features

Designed for peak performance and durability the WEATHERHEAD H430 Hydraulic Hose. 100R12 is ideal for hydraulic system service with both petroleum and water-based fluids fitting seamlessly into general industrial applications. The hose features robust construction capable of withstanding the highest pressures while the premium abrasion-resistant cover ensures long-lasting use even in harsh conditions.

With certifications such as EN856 Type R12 SAE 100R12 and EN856 4SP this hose complies with USCG MSHA DNV and ABS standards offering reliable and certified quality. The 4-spiral construction with wire reinforcement guarantees exceptional durability and 500 000 impulse cycle life ensuring extended hose assembly life.

Notable for its black synthetic rubber cover and tube material the hose maintains flexibility and functionality in temperatures ranging from -40C. It is optimized for a minimum bend radius of 4.72 inches.

Supplier Part Number: H43012

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HB51	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications EN856 Type R12\|SAE 100R12\|EN856 4SP	Color Black	Compliances USCG\|MSHA Approved\|DNV\|ABS Certified	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 4.72	Minimum Bend Radius 4.72	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.24	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Sub Brand Weatherhead	Supplier Part Number H43012	Tube Material Synthetic Rubber	Product Weight 45.00 lbs

Product Questions & Answers (1)

Question by: Denise H on Jul 12, 2025, 7:53 AM

got a -12 hose on a piece of equipment, is this H43012 the same dash size and what’s it built like?

Answer by: Customer Support on Jul 13, 2025, 7:25 PM

For a -12 line, H43012 matches that dash size. Construction is a 4-spiral wire reinforced hose with a synthetic rubber tube and a black synthetic rubber cover, and it is made for hydraulic service with petroleum and water-based fluids in general industrial use.
