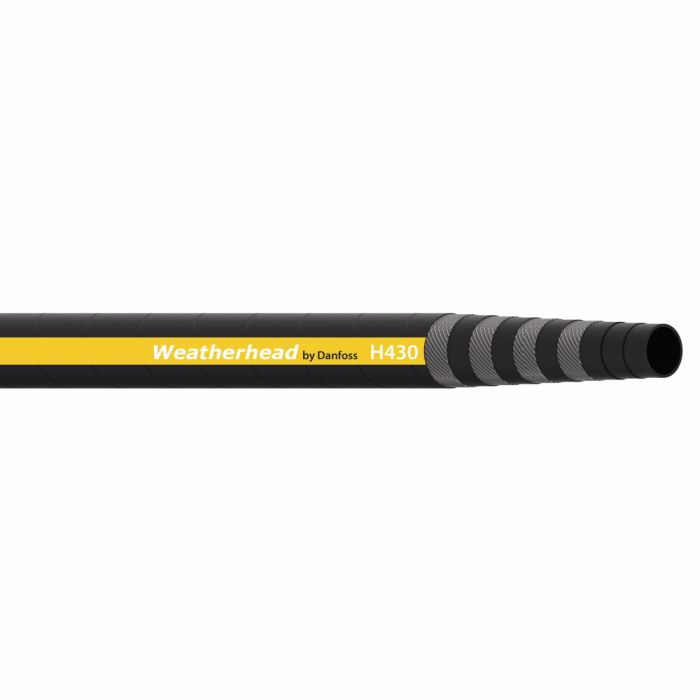

WEATHERHEAD H430 HYDRAULIC HOSE. 100R12

Description & Features

Designed for high-pressure hydraulic system service, the Weatherhead H430 Hydraulic Hose 100R12 is a four-spiral wire-reinforced hose built to perform under demanding industrial conditions. The synthetic rubber tube and cover handle both petroleum-based and water-based fluids, with the cover rated for premium abrasion resistance and a temperature range starting at -40°F.

Certified to SAE 100R12, EN856 Type R12, and EN856 4SP, this hose carries compliance approvals from ABS, DNV, USCG, and MSHA, making it suitable for a wide range of regulated industrial environments. At dash size -24, it has a minimum bend radius of 9.84 inches and is rated for an impulse cycle life of 500,000 cycles. The embossed lay line aids identification and orientation during assembly. Compatible qualified fittings include the 430 U and 4S series.

SKU: IGH43024-150

Supplier Part Number (MPN): H43024-150

Alternate Part Numbers: C1HB56

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HB56	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications SAE 100R12\|EN856 Type R12\|EN856 4SP	Class WEB-ITEM	Color Black	Compliances ABS Certified\|DNV\|USCG\|MSHA Approved	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -24	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 9.84	Minimum Bend Radius 9.84	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 2.16	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Supplier Part Number H43024-150	Tube Material Synthetic Rubber	Product Weight 304.50 lbs

Product Questions & Answers (1)

Question by: Randy T on Nov 26, 2025, 7:04 PM

What kind of fittings work with this hose? I see a couple mentioned.

Answer by: Customer Support on Nov 28, 2025, 12:16 PM

You can use 430 U and 4S series fittings with this Weatherhead hydraulic hose.
