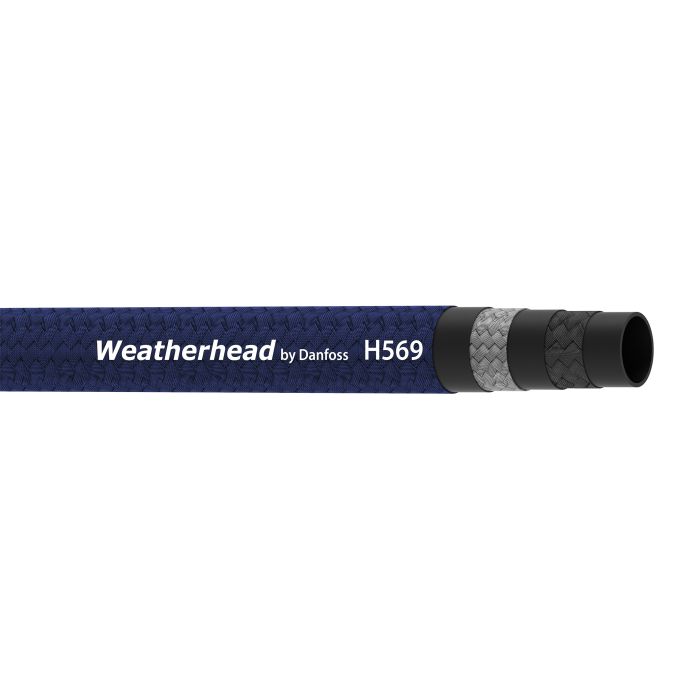

Weatherhead H569 Hydraulic Hose

Description & Features

Rated to SAE 100R5 and SAE J1402 standards with DOT AII compliance, the Weatherhead H569 Hydraulic Hose is a three-braid, fiber-covered hose built for air brake, hydraulic, and diesel fuel service. The blue fiber cover provides premium abrasion resistance, while the CPE tube and combined fiber-and-steel reinforcement support reliable performance across a broad temperature range, with a minimum working temperature of -58°F.

With a dash size of -12 and a minimum bend radius of 6.5 inches, this hose is suited for routing in space-constrained installations. It is rated for 150,000 impulse cycles and is compatible with qualified fittings 069 E and 247 N. Its conductive construction and multi-application design make it a practical choice where a single hose must handle several fluid types.

SKU: IGH56912

Supplier Part Number (MPN): H56912

Specifications

Abrasion Resistance 28	Application Air brake truck, hydraulics, diesel fuel.	Certifications SAE J1402\|ABS\|SAE 100R5	Class WEB-ITEM	Color Blue	Compliances DOT AII	Conductivity 30	Construction 3 Braid	Cover Material Fiber	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 6.50	Minimum Bend Radius 6.5	Minimum Working Temperature -58	Net Pack Quantity Units FT	NMFC 70	Product Width 1.08	Qualified Hose Fittings 069 E, 247 N	Reinforcement Material Fiber and steel	Supplier Part Number H56912	Tube Material CPE	Product Weight 0.44 lbs

Product Questions & Answers (1)

Question by: Stan T on Jul 11, 2025, 3:05 PM

How flexible is this hose, like what's the tightest it can bend without causing problems?

Answer by: Customer Support on Jul 13, 2025, 8:42 AM

The minimum bend radius is 6.5 inches, so that's the tightest loop you'd want to make with it to avoid kinking or damaging the hose.
