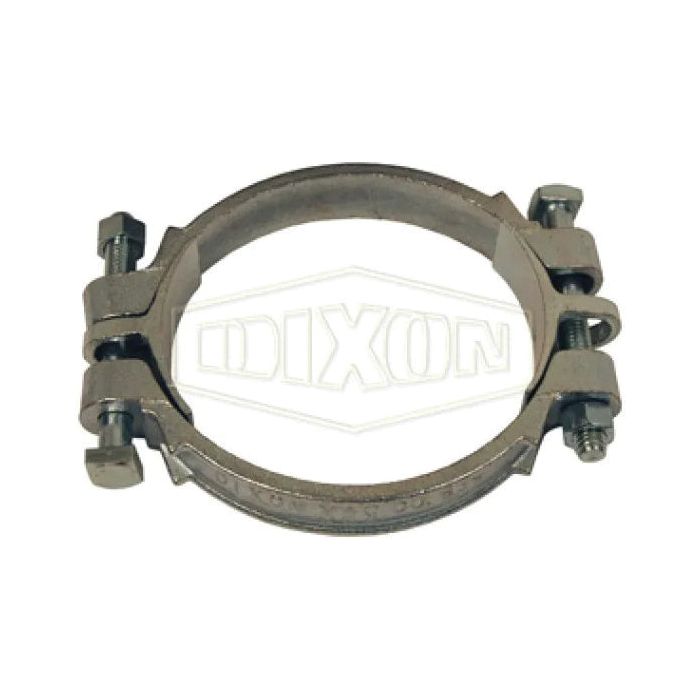

Malleable Iron Double Bolt Clamp, 3.50 To 3.81 Inch Diameter

Description & Features

Constructed from malleable iron with machine bolts and hex nuts, the Malleable Iron Double Bolt Clamp, 3.50 To 3.81 Inch Diameter from Dixon Valve & Coupling is designed for secure hose clamping across a clamping range of 3.500 to 3.8125 inches. The two-saddle design distributes clamping force evenly, while dual gripping ridges on the inner surface help maintain a firm, slip-resistant hold on the hose.

Reinforced bolt lugs resist bending out of alignment under load, supporting consistent performance at the rated torque of 40 lb-ft. Torque values are based on dry bolts, use of lubricant on the bolts will adversely affect clamp performance. This clamp is not recommended for use with helical wire hose.

SKU: 400-DIXON

Supplier Part Number (MPN): 400

Alternate Part Numbers: 20019951, C1BN59

Specifications

Brand Dixon Valve & Co	Brand Dixon Valve & Co	Pack Size 1.00	UOM EA	Maximum Diameter 3.81	Minimum Diameter 3.50	Saddles 2	Supplier Part Number 400	Torque Rating 40 lb-ft	Torque Rating 40 lb-ft	Product Weight 1.60 lbs	Alternate Part Numbers Alternate Part Number 20019951, Alternate Part Number C1BN59

Similar Products

Model Number	Saddles	Minimum Diameter	Maximum Diameter	Torque Rating	Price	Action
400-DIXON Iron Double Bolt Clamp	2	3.5	3.8125	40 lb-ft

Product Questions & Answers (3)

Question by: Duane C on Mar 31, 2025, 2:43 PM

What size range does this clamp fit? Need to make sure it'll work on my hose.

Answer by: Customer Support on Apr 2, 2025, 9:21 AM

This malleable iron double bolt clamp is designed for hoses with an outside diameter between 3.50 inches and 3.81 inches. Be sure to measure your hose accurately before ordering to ensure a proper fit.

Question by: Pete J on Mar 20, 2026, 9:45 PM

bolts on this thing, do they need any kind of grease or anti-seize before torquing down?

Answer by: Customer Support on Mar 22, 2026, 9:06 PM

Keep the bolts dry when you're torquing them. The 40 lb-ft torque rating on this clamp is based on dry bolt conditions, and putting any lubricant on them will throw off the clamping performance. It's one of those details that's easy to overlook but makes a real difference in how the clamp holds.

Question by: Gary W on Sep 17, 2025, 10:44 AM

got a hose that measures right at 3 3/4 inch on the outside, will this clamp tighten down on that ok?

Answer by: Customer Support on Sep 19, 2025, 10:10 AM

It covers hose outside diameters from 3.50 inches up to 3.8125 inches, so a 3.75 inch OD falls inside the adjustment range.
