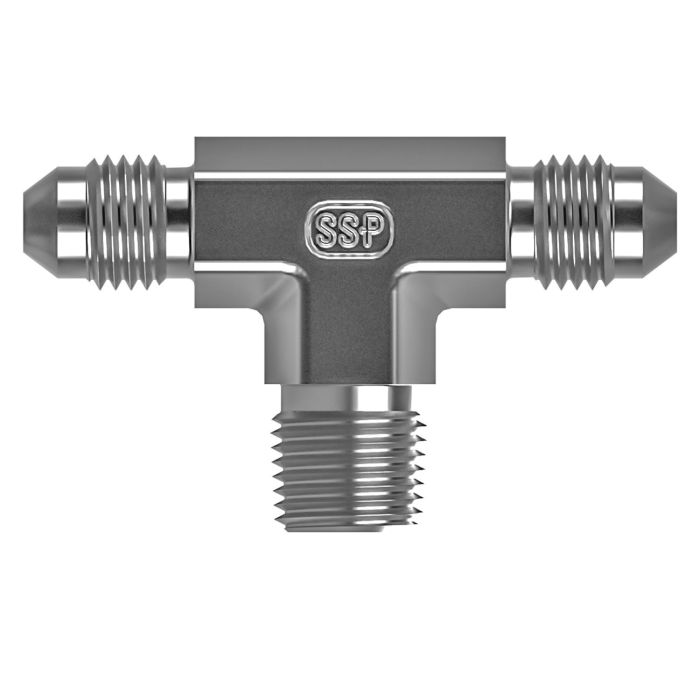

SAE 37° Flared Flared Fittings, Male Branch Tee, 1/4 Male SAE 37° Flared x 1/4 Male SAE 37° Flared x 1/8 MNPT, 316 SS

Ask A Question

Description & Features

The SAE 37° Flared Flared Fittings, Male Branch Tee is engineered for robust industrial applications, featuring a 1/4" Male SAE 37° Flared x 1/4" Male SAE 37° Flared x 1/8" MNPT configuration. Constructed from high-grade 316 stainless steel, this fitting ensures superior resistance to corrosion, making it ideal for demanding environments. Its precision design provides a secure and leak-proof connection, suitable for various hydraulic systems requiring reliable performance.

With its compact and efficient design, this male branch tee is perfect for systems requiring precise flow control and connectivity. The use of 316 stainless steel not only enhances durability but also extends the service life of the fitting under extreme conditions. This product is part of the SSP brand, known for quality and dependability in industrial fittings and components.

SKU: J4-4-2TTM

Supplier Part Number (MPN): J4TTM

Alternate Part Numbers: C1FK70, MI-08750300, MINO-00766X89791

Specifications

Brand
SSP
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Male NPT
Dimension Standards
ANSI/ASME B1.20.1, ANSI/ASME B1.20.3, ANSI/ASME BS 21, ASME B31.3, DIN 2999, JIS B0203, SAE J514
Dimensions
1.78 in L
Fitting Type
Tee
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
5000 psi
Series
J-TTM Series
Thread Size
1/8-27, 7/16-20

Product Questions & Answers (2)

Question by: Brent A on Oct 27, 2025, 6:01 PM
Got a system running 1/4" SAE flare lines but I need to tap off to a 1/8" NPT port for a gauge or sensor. this fitting work for that kind of setup?
Answer by: Customer Support on Oct 28, 2025, 8:58 PM
That's the kind of job this tee handles. Two of the ports are 1/4" Male SAE 37° Flare and the third is 1/8" Male NPT, so you can branch off your main flare line and feed a smaller threaded port at the same time without needing an extra adapter in between.
Question by: Warren R on Jan 23, 2026, 3:09 PM
trying to replace a tee i busted, is this one 1/4 JIC on the run and 1/8 male pipe thread on the branch?
Answer by: Customer Support on Jan 24, 2026, 5:16 PM
Youve got it. The run is 1/4 inch male SAE 37 degree flare on both ends, and the branch is 1/8 inch MNPT.
