Kobelco (Sealed) X Female Npt

Description & Features

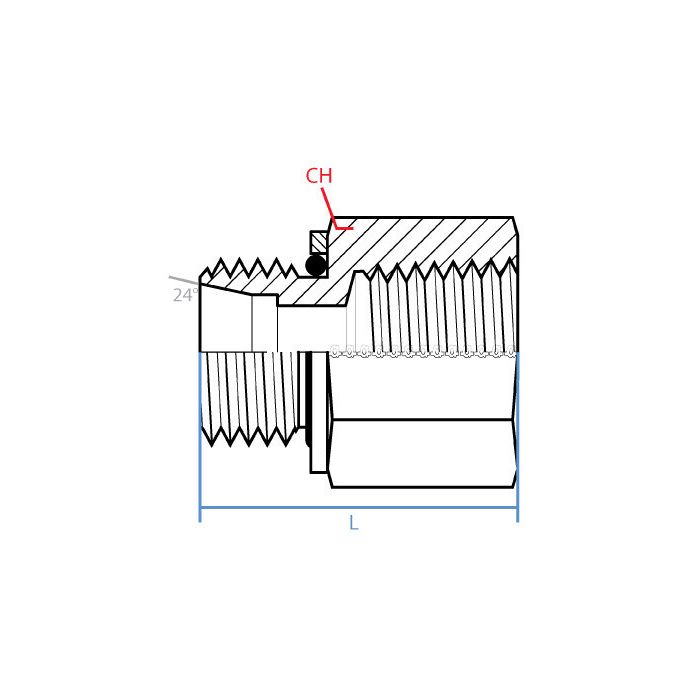

This straight steel adapter connects a Kobelco sealed male port, threaded M30 x 1.5 with an L22 Special configuration, to a 3/4" female NPT fitting. Manufactured by Adaptall, it is designed for use in hydraulic systems where Kobelco-style ported connections need to interface with standard NPT female threads.

The Kobelco (Sealed) X Female Npt adapter is constructed from steel, offering reliable durability in demanding hydraulic applications. The sealed Kobelco side provides a leak-resistant metal-to-metal or O-ring-assisted port connection, while the 3/4-14 NPTF female end accommodates standard tapered pipe thread fittings commonly found in hydraulic circuits and industrial equipment.

SKU: 9635S-30X1.5-L22-12

Supplier Part Number (MPN): 9635S-30X1.5-L22-12

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 1.5	Side 1 Gender M	Side 1 Size L22 SPECIAL	Side 1 Type Kobelco	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-30X1.5-L22-12	Product Weight 0.46 lbs

Product Questions & Answers (1)

Question by: Bobby K on Feb 3, 2026, 2:21 PM

Got a Kobelco port on a piece of equipment running M30 x 1.5 threads with that L22 Special setup. Will this adapter get me over to a standard 3/4" NPT female fitting without any kind of thread adapter in between?

Answer by: Customer Support on Feb 5, 2026, 2:16 PM

That's exactly what this piece is built for. One end is a sealed Kobelco male port in M30 x 1.5 with the L22 Special configuration, and the other end is a 3/4-14 NPTF female thread. So yeah, you're going straight from that Kobelco port into a standard 3/4" NPT female connection in one shot, no extra adapters needed.
