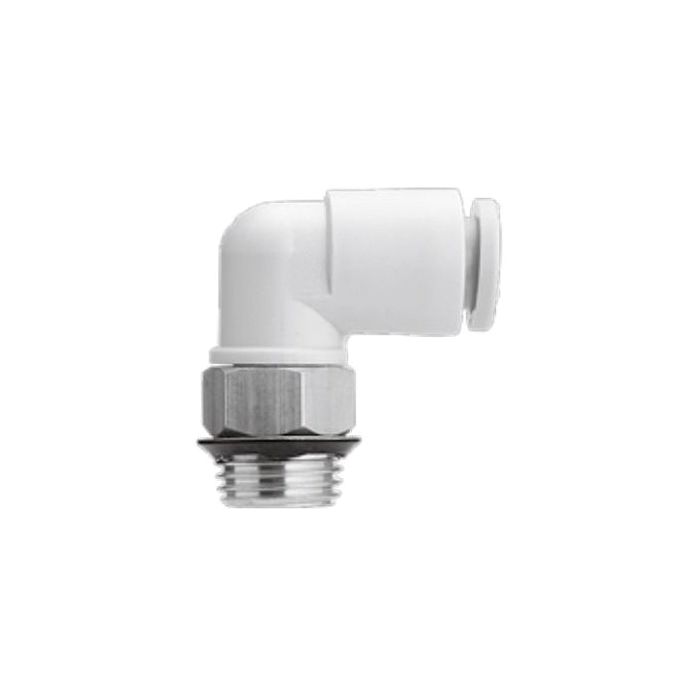

main product photo

SMC FTGS/TUBING

Ask A Question

Description & Features

Designed for use in pneumatic tube fitting assemblies, the SMC Ftgs/Tubing component KQ2L06-U01N is a compact inline fitting element from SMC USA, suited for connecting and routing tubing in compressed air and fluid control systems. The 06 designation indicates a 6mm tube outer diameter compatibility, making it appropriate for small-bore pneumatic circuits where space and flow efficiency are considerations.

As part of SMC's KQ2 one-touch fitting series, this fitting supports quick tube insertion and secure retention without additional tooling, which supports efficient assembly and maintenance in industrial automation and pneumatic control applications.

SKU: KQ2L06-U01N

Supplier Part Number (MPN): KQ2L06-U01N

Specifications

Brand
SMC®
Color
Light Gray/White
Connection Size 1
6 mm
Connection Size 2
1/8 in
Connection Type
Male, Tube
Connection Type 1
Tube OD
Connection Type 2
Male Union
Dimensions
15.5 mm L x 10 mm H
Finish
Electroless Nickel-Plated
Fitting Type
Elbow
Hex Size
10
Material
Brass
Material Construction
Brass
Pressure Rating
-100 kPa to 1 Mpa
Series
KQ2 Series
Tube OD
6 mm

Product Questions & Answers (1)

Question by: Lee A on Aug 1, 2025, 5:38 PM
What size tubing does this fitting work with? Just want to make sure it's the right one before I order it.
Answer by: Customer Support on Aug 3, 2025, 6:03 AM
This fitting is designed for use with 6mm outer diameter tubing, which makes it well-suited for smaller pneumatic systems.
