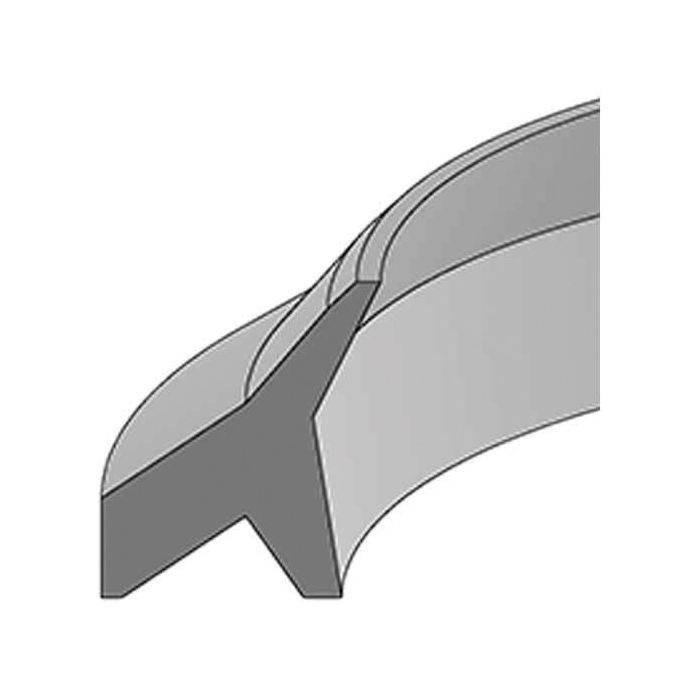

KW Style Urethane Wiper Ring, 0.88 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.190 Inch Base Thickness

Ask A Question

Description & Features

Designed for hydraulic cylinder rod sealing applications, the KW Style Urethane Wiper Ring, 0.88 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.190 Inch Base Thickness is a KW-profile wiper ring manufactured by Hercules Sealing Products. Its urethane construction provides reliable performance across a wide service temperature range of -65°F to 220°F, making it well suited for demanding hydraulic environments.

With a rod diameter of 0.875 inch, an outer diameter of 1.25 inch, and a base thickness of 0.190 inch, this wiper ring is sized to fit standard hydraulic cylinder rod gland configurations. Wiper rings of this type serve to exclude contaminants, such as dirt, moisture, and debris, from entering the cylinder as the rod retracts, helping to protect internal seals and extend overall cylinder service life.

SKU: KW-0875

Supplier Part Number (MPN): KW-0875

Alternate Part Numbers: C1DC95

Specifications

Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Rod Diameter A
0.88
Supplier Part Number
KW-0875
Thickness (in)
0.19
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1DC95

Similar Products

Model Number Rod Diameter A Wiper O.D. B Thickness (in) Price Action
KW Style Urethane Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1500 KW Style Urethane Wiper Ring

1.5

1.875

0.190

KW Style Urethane Wiper Ring, 0.75 Inch Rod Diameter, 1.13 Inch Wiper OD, 0.190 Inch Base Thickness

KW-0750 KW Style Urethane Wiper Ring

0.75

1.125

0.190

KW Style Urethane Wiper Ring, 0.88 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.190 Inch Base Thickness

KW-0875 KW Style Urethane Wiper Ring

0.875

1.25

0.190

KW Style Urethane Wiper Ring, 1.00 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1000 KW Style Urethane Wiper Ring

1

1.375

0.190

KW Style Urethane Wiper Ring, 1.25 Inch Rod Diameter, 1.63 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1250 KW Style Urethane Wiper Ring

1.25

1.625

0.190

KW Style Urethane Wiper Ring, 1.38 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1375 KW Style Urethane Wiper Ring

1.375

1.75

0.190

KW Style Urethane Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1750 KW Style Urethane Wiper Ring

1.75

2.125

0.190

KW Style Urethane Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.190 Inch Base Thickness

KW-2000 KW Style Urethane Wiper Ring

2

2.375

0.190

KW Style Urethane Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.250 Inch Base Thickness

KW-2500 KW Style Urethane Wiper Ring

2.5

3

0.250

Product Questions & Answers (2)

Question by: Peggy K on Sep 23, 2025, 7:12 AM
So this is for keepin' the gunk outta my hydraulic cylinder, right? Like when the rod slides back in?
Answer by: Customer Support on Sep 25, 2025, 7:09 AM
That's precisely what it's for. This urethane wiper ring is designed to stop dirt, moisture, and other debris from getting inside the cylinder as the rod retracts, which helps protect the seals and keeps everything running smoothly.
Question by: Duane J on Aug 14, 2025, 7:26 PM
Got a cylinder with a 0.875 inch rod that needs a new wiper, this the right size for that?
Answer by: Customer Support on Aug 16, 2025, 11:20 AM
the rod diameter on this one is 0.875 inch, so that lines up. The outer diameter runs 1.25 inch and the base thickness is 0.190 inch, which fits standard rod gland configurations for that rod size. Long as your gland is cut to those dimensions, you should be good to go.
