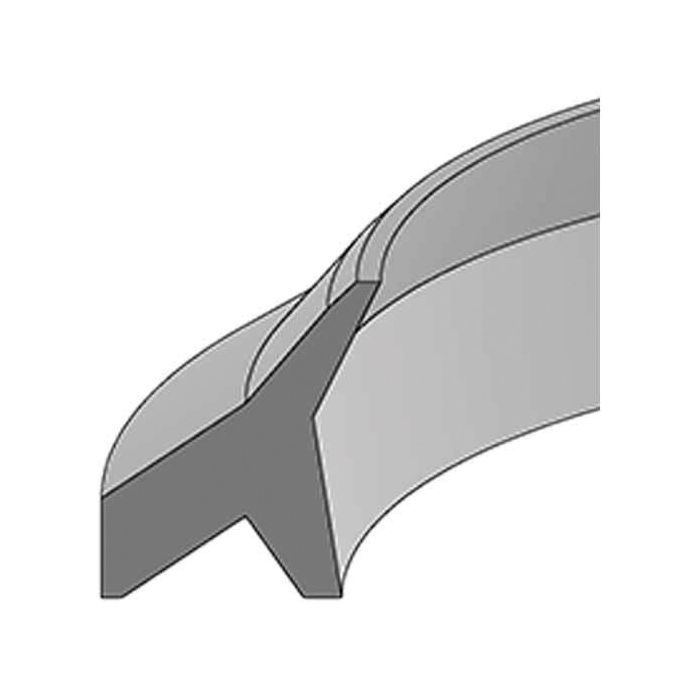

KW Style Urethane Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.190 Inch Base Thickness

Description & Features

This Hercules Sealing Products wiper ring prevents contaminants from entering hydraulic cylinders. Constructed from durable urethane, this KW Style Urethane Wiper Ring provides reliable and long-lasting performance in demanding hydraulic applications.

The wiper ring is designed for a 1.50 inch rod diameter with a 1.88 inch wiper OD and a 0.190 inch base thickness. It maintains its flexibility and sealing properties in temperatures ranging from -65°F to 220° F.

SKU: KW-1500

Supplier Part Number (MPN): KW-1500

Alternate Part Numbers: C1DD11, MI-02227757, MINO-00407X30537

Specifications

Brand
HERCULES® SEALING PRODUCTS
Dimensions
0.19 in H x 0.19 in THK
Durometer
90
Inside Diameter
1-1/2 in
Material
Urethane
Series
KW Series

Similar Products

Model Number Inside Diameter Outside Diameter Price Action
KW Style Urethane Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.250 Inch Base Thickness

KW-2500 KW Style Urethane Wiper Ring

2-1/2 in

KW Style Urethane Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1750 KW Style Urethane Wiper Ring

1-3/4 in

KW Style Urethane Wiper Ring, 0.88 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.190 Inch Base Thickness

KW-0875 KW Style Urethane Wiper Ring

KW Style Urethane Wiper Ring, 1.25 Inch Rod Diameter, 1.63 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1250 KW Style Urethane Wiper Ring

1-1/4 in

KW Style Urethane Wiper Ring, 1.38 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1375 KW Style Urethane Wiper Ring

1.38 in

KW Style Urethane Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.190 Inch Base Thickness

KW-2000 KW Style Urethane Wiper Ring

KW Style Urethane Wiper Ring, 0.75 Inch Rod Diameter, 1.13 Inch Wiper OD, 0.190 Inch Base Thickness

KW-0750 KW Style Urethane Wiper Ring

3/4 in

KW Style Urethane Wiper Ring, 1.00 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.190 Inch Base Thickness

KW-1000 KW Style Urethane Wiper Ring

1 in

HERCULES WIPER

KW-1125

1-1/8 in

HERCULES WIPER SEAL

KW-3000

3 in

Product Questions & Answers (2)

Question by: Bonnie R on Oct 18, 2025, 7:10 AM
i’ve got a 1.50 rod, is this the right wiper size or am i gonna be fighting it?
Answer by: Customer Support on Oct 20, 2025, 8:30 AM
It’s sized for a 1.50 inch rod diameter with a 1.875 inch wiper outside diameter and a 0.190 inch base thickness, so those are the numbers you want to match up to your gland and rod.
Question by: Wayne B on Dec 31, 2025, 12:18 PM
what's the temp range on this wiper? got equipment runnin in some pretty harsh conditions and need to know if urethane holds up
Answer by: Customer Support on Jan 2, 2026, 6:05 AM
Urethane handles a wider range than most folks expect. This ring is rated from -65°F all the way up to 220°F, so it holds up through cold startups and hot running conditions without getting brittle or breaking down early.
