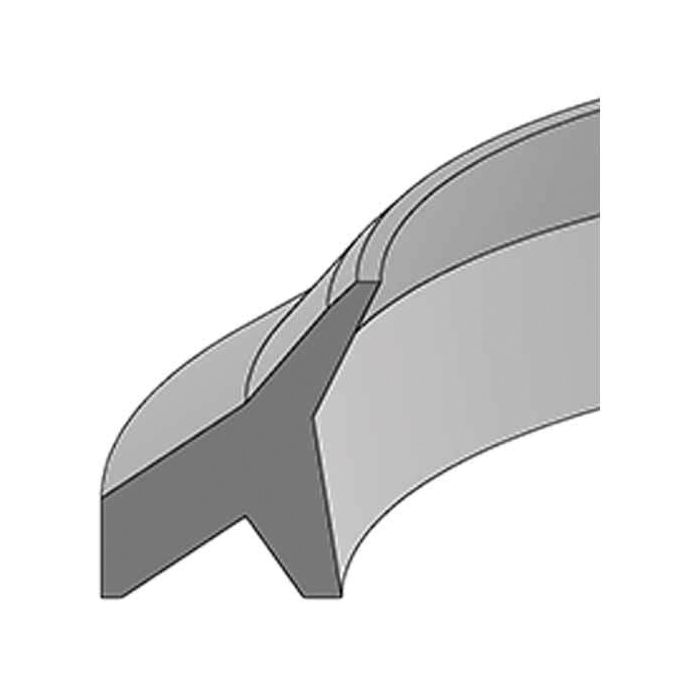

KW Style Urethane Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.190 Inch Base Thickness

Description & Features

Engineered for durability, the KW Style Urethane Wiper Ring is designed to effectively remove contaminants from hydraulic rods, ensuring optimal performance. With a rod diameter of 2.00 inches and a wiper outer diameter of 2.38 inches, this precision-crafted wiper ring is ideal for maintaining system integrity. Constructed from high-quality urethane, it operates efficiently within a temperature range of -65°F to 220°F, providing versatile functionality in diverse industrial environments.

This wiper ring features a base thickness of 0.190 inches, offering robust sealing capability and enhanced protection against dust and debris. Manufactured by Hercules Sealing Products, it meets demanding industrial standards, making it suitable for a variety of hydraulic applications. The well-defined specifications ensure compatibility and reliability in high-pressure scenarios, contributing to extended equipment lifespan.

SKU: KW-2000

Supplier Part Number (MPN): KW-2000

Alternate Part Numbers: C1DD14, MI-01810418, MINO-00407Q30191

Specifications

Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 2	Supplier Part Number KW-2000	Thickness (in) 0.19	Product Weight 0.02 lbs	Alternate Part Numbers Alternate Part Number C1DD14, Alternate Part Number MI-01810418, Alternate Part Number MINO-00407Q30191

Similar Products

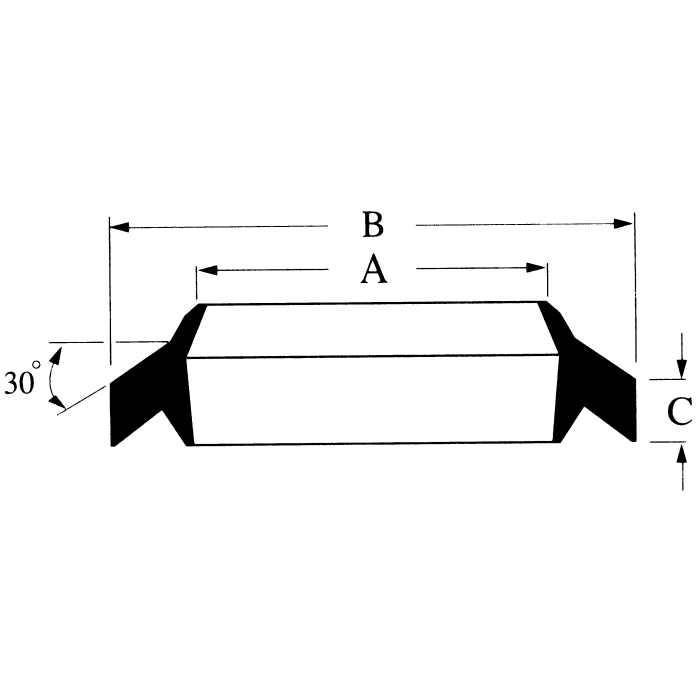

Model Number	Rod Diameter A	Wiper O.D. B	Thickness (in)
KW-1500 KW Style Urethane Wiper Ring	1.5	1.875	0.190
KW-0750 KW Style Urethane Wiper Ring	0.75	1.125	0.190
KW-0875 KW Style Urethane Wiper Ring	0.875	1.25	0.190
KW-1000 KW Style Urethane Wiper Ring	1	1.375	0.190
KW-1250 KW Style Urethane Wiper Ring	1.25	1.625	0.190
KW-1375 KW Style Urethane Wiper Ring	1.375	1.75	0.190
KW-1750 KW Style Urethane Wiper Ring	1.75	2.125	0.190
KW-2500 KW Style Urethane Wiper Ring	2.5	3	0.250

Product Questions & Answers (2)

Question by: Gary F on Mar 20, 2026, 6:27 PM

got a cylinder with a 2 inch rod, is this KW-2000 wiper the right size or am i off a bit

Answer by: Customer Support on Mar 22, 2026, 8:46 AM

Fit comes down to the rod diameter and the wiper outside diameter. This KW style wiper ring is sized for a 2.00 inch rod, with a 2.38 inch wiper OD and a 0.190 inch base thickness.

Question by: Lee J on Nov 14, 2025, 4:38 PM

Got a cylinder rod that's 2 inches across, this wiper ring gonna fit right, or do I need to double-check anything before ordering?

Answer by: Customer Support on Nov 16, 2025, 6:58 AM

For a 2.00 inch rod, this is the correct size. The wiper OD measures 2.375 inches and the base thickness comes in at 0.190 inches, so those are the numbers to cross-reference with your housing bore and groove depth before you drop it in. As long as your groove dimensions match up, you should be good to go.
