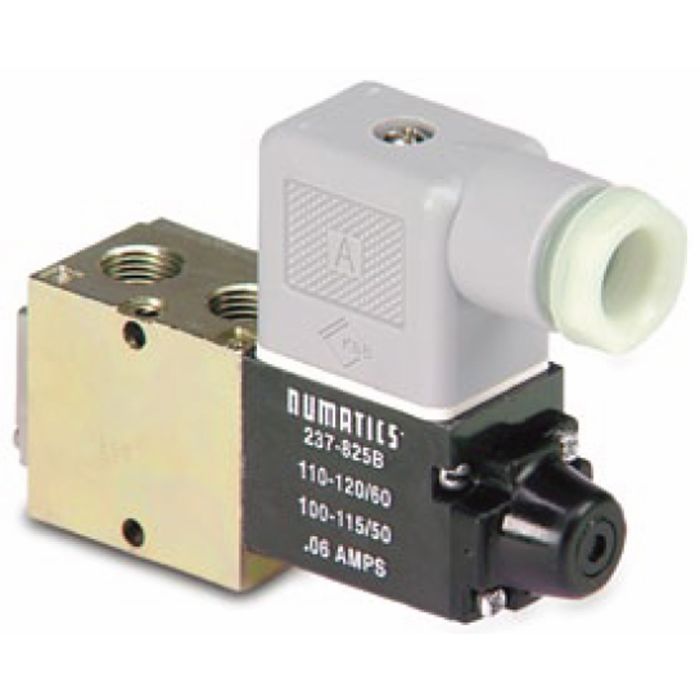

L01 Series 4-Way Solenoid Operated Pneumatic Valves, Up To 9.3 SCFM
Description & Features
| Features | Direct solenoid actuated. DIN plug-in solenoid with indicator light available. Integral speed control available. In-line or manifold mounted. Designed to meet the requirements of NEMA 4 / IP65. |
| Lubrication | Unlubricated or lubricated service |
| Operating Pressure Range | 28'' Hg to 150 PSIG |
Products
| Model Number | Valve Type | Ports | Flow Rating (SCFM) | CV Factor | Coil | Housing | Price | Action |
|---|---|---|---|---|---|---|---|---|
L01SA4592000030 L01 Series Solenoid Pneumatic Valve |
Single Direct Solenoid, Spring Return W/Flush Non-locking Override |
1/8 |
9.3 |
0.2000 |
110-120/50-60 VAC |
|
|
|
L01SA4594000061 L01 Series Solenoid Pneumatic Valve |
Single Direct Solenoid, Spring Return W/Flush Non-locking Override |
1/8 |
9.3 |
0.2000 |
24 VDC |
|
|
