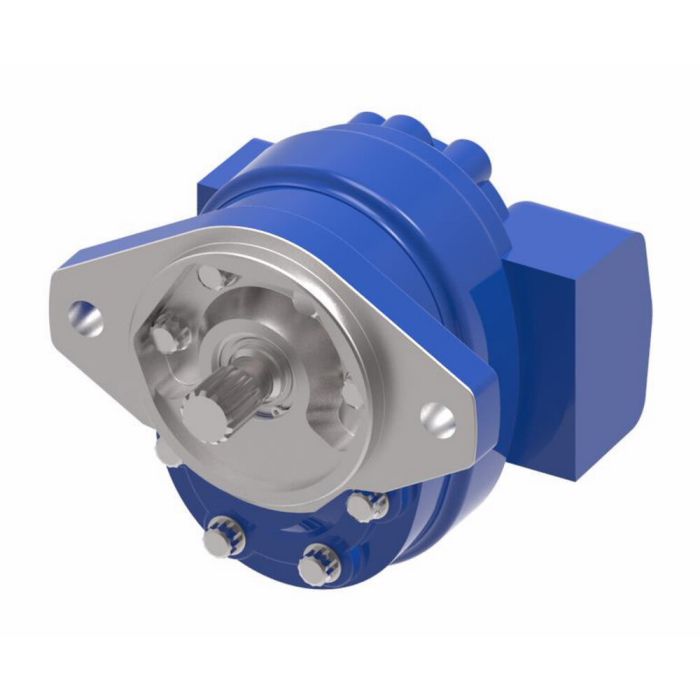

main product photo

L2 Series Gear Pump, 2.05 cu in/rev, 2-Bolt SAE B Mounting Flange, 13 Tooth SAE B Splined Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

Ask A Question

Description & Features

Designed for demanding fixed-displacement hydraulic circuits, the L2 Series Gear Pump delivers 2.05 cu in/rev displacement at a rated speed of 2750 RPM, with a pressure rating of 3600 PSI and a rated flow of 15.9 GPM. The 2-bolt SAE B mounting flange and 13-tooth SAE B splined shaft provide straightforward integration into standard hydraulic drive configurations.

Port configuration consists of an SAE-20 side inlet and SAE-12 side outlet, with clockwise shaft rotation. Operating temperature range spans from -20°F minimum to 225°F continuous maximum. The pump is field-reversible for direction, and its single-configuration design supports a wide range of industrial sectors including agricultural equipment, material handling, civil engineering, metal forming, and specialty construction.

Manufactured by Eaton Char-Lynn under the Danfoss Power Solutions brand, this unit offers reduced noise and vibration alongside solid volumetric and mechanical efficiency for mobile and stationary hydraulic applications.

SKU: 25503-RSA

Supplier Part Number (MPN): 25503-RSA

Alternate Part Numbers: C1JX98

Specifications

Application
Agricultural, Civil Engineering, Primary metals, Material handling, Speciality Construction, Metal Forming, Natural Resources
Configuration
32
Displacement
2.05
Displacement
2.05
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction
Identification
Standard
Minimum Working Temperature
-20
Mount
2-Bolt SAE B
Mount
2-Bolt SAE B
Ports
SAE-20 Side Inlet, SAE-12 Side Outlet
Ports
SAE-20 Side Inlet, SAE-12 Side Outlet
Pressure Rating
3600
Rated Flow
15.90
Rated Flow
15.9
Rotation
CW
Shaft
13 Tooth SAE B Splined
Shaft
13 Tooth SAE B Splined
Special Features
None
Speed Rating
2750 RPM
Speed Rating
2750 RPM
Supplier Part Number
25503-RSA
Alternate Part Numbers
Alternate Part Number C1JX98
Product Weight
14.00 lbs

Related Documents

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Action
L2 Series Gear Pump, 1.55 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25501-RSC L2 Series Gear Pump

1.55

12

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

3000 RPM

3600

L2 Series Gear Pump, 2.05 cu in/rev, 2-Bolt SAE B Mounting Flange, 13 Tooth SAE B Splined Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25503-RSA L2 Series Gear Pump

2.05

15.9

2-Bolt SAE B

13 Tooth SAE B Splined

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

L2 Series Gear Pump, 2.33 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CCW Rotation.

25504-LSC L2 Series Gear Pump

2.33

18.1

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CCW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

L2 Series Gear Pump, 2.33 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25504-RSC L2 Series Gear Pump

2.33

18.1

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

Product Questions & Answers (3)

Question by: Judy K on Jan 8, 2026, 3:58 PM
What kind of stuff is this pump good for?
Answer by: Customer Support on Jan 10, 2026, 6:45 AM
This L2 series gear pump works in agricultural equipment, civil engineering, material handling, and specialty construction, among other applications.
Question by: Terry C on Jun 8, 2025, 6:07 AM
got a 2-bolt SAE B mount and a 13-tooth SAE B spline on my setup. is this pump the right match, and which way does it spin?
Answer by: Customer Support on Jun 9, 2025, 4:42 PM
It matches a 2-Bolt SAE B mounting flange and a 13 Tooth SAE B splined shaft. Rotation on this model is CW.
Question by: Chad H on May 9, 2025, 3:07 PM
Got a machine running a 2-bolt SAE B setup with a 13-tooth splined shaft, this pump gonna drop right in without any adapter nonsense?
Answer by: Customer Support on May 11, 2025, 6:00 AM
Straight bolt-up on a standard 2-bolt SAE B flange, and the 13-tooth SAE B splined shaft matches that mount pattern exactly. Port side gives you an SAE-20 inlet and SAE-12 outlet, both side-ported. Long as your existing hydraulic connections lines up to those port sizes, you're not looking at any adapter work on the mechanical end.
