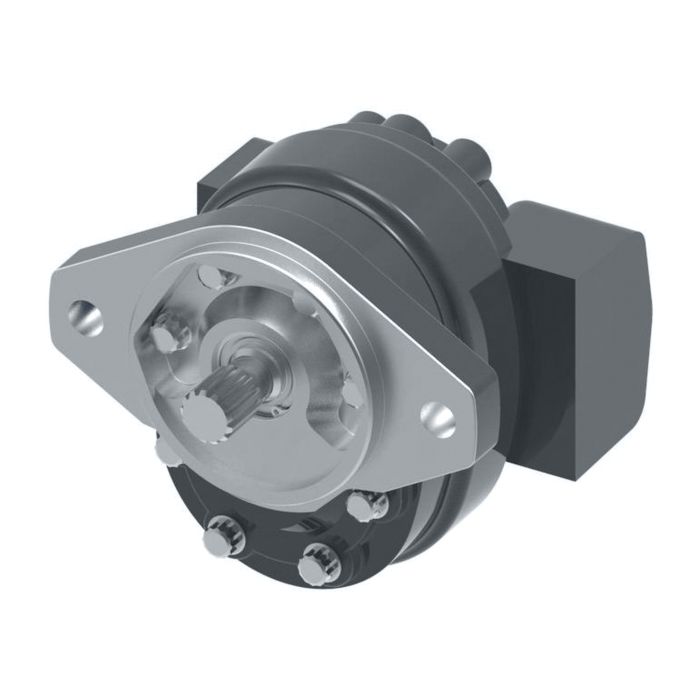

L2 Series Gear Pump, 2.33 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CCW Rotation.

Ask A Question

Description & Features

This Eaton Char-Lynn L2 Series Gear Pump is a single configuration pump with a 2.33 cu in/rev displacement. It features a 2-Bolt SAE B mounting flange and a 7/8 straight keyed shaft.

Designed for demanding applications, this L2 Series Gear Pump excels in agricultural, civil engineering, primary metals, material handling, speciality construction, metal forming, and natural resources equipment. The pump features SAE-20 side inlet and SAE-12 side outlet ports.

This gear pump offers field reversible pump direction, reduced noise and vibration, and improved volumetric and mechanical efficiency. Rotation is CCW and speed rating is 2750 RPM.

SKU: 25504-LSC

Supplier Part Number (MPN): 25504-LSC

Alternate Part Numbers: C1JY11

Specifications

Brand
Danfoss
Configuration
Single
Dimensions
6.47 in L x 7 in W x 5.54 in H
Gear Type
Single-Stage
Grp Pressure Limit
Inlet: 6 inHg Vacuum
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25504
Mounting Type
2-Bolt Flanged
Outlet Size
1-1/16-12
Outlet Type
SAE O-ring
Port
SAE 20 Side Inlet, SAE 12 Side Outlet
Rotation
Counterclockwise (Left-Hand)
Segment Code
B
Series
L2 Series
Shaft
7/8 in Straight Keyed
Unit Type
Plain

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Action
L2 Series Gear Pump, 1.55 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25501-RSC L2 Series Gear Pump

1.55

12

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

3000 RPM

3600

L2 Series Gear Pump, 2.05 cu in/rev, 2-Bolt SAE B Mounting Flange, 13 Tooth SAE B Splined Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25503-RSA L2 Series Gear Pump

2.05

15.9

2-Bolt SAE B

13 Tooth SAE B Splined

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

L2 Series Gear Pump, 2.33 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25504-RSC L2 Series Gear Pump

2.33

18.1

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

Product Questions & Answers (2)

Question by: Brenda H on Nov 15, 2025, 8:18 AM
Will this pump work for a log splitter application?
Answer by: Customer Support on Nov 17, 2025, 6:47 AM
Eaton Char-Lynn L2 series gear pumps are frequently used in material handling and specialty construction, including log splitters.
Question by: Freddie C on Oct 2, 2025, 6:35 PM
got a setup that needs a 2-bolt SAE B mount and a 7/8 straight keyed shaft. is that what this pump comes with?
Answer by: Customer Support on Oct 4, 2025, 6:07 AM
It matches a 2-bolt SAE B mounting flange and a 7/8 straight keyed shaft, so those two interface points line up with what you described.
