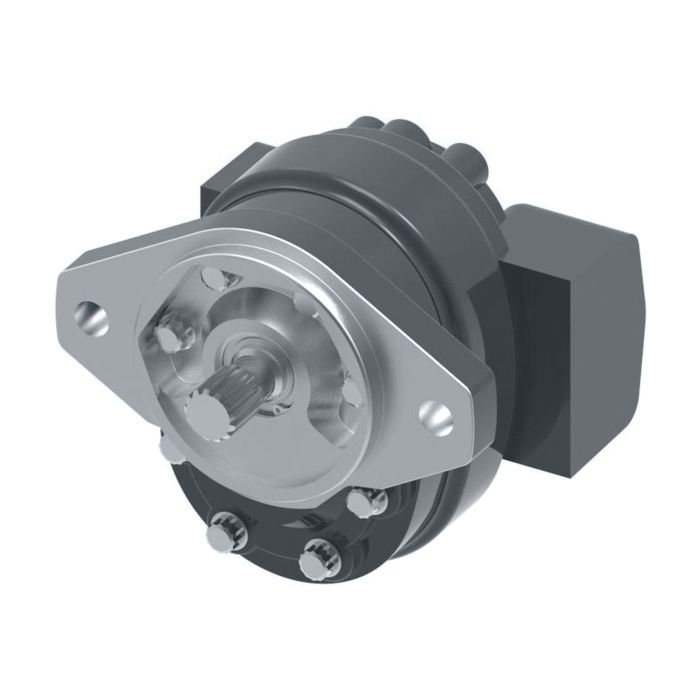

main product photo

L2 Series Gear Pump, 2.33 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions II LLC (Char-Lynn) this single hydraulic gear pump operates with a displacement of 2.33 cu in/rev. Enhanced with a 2-bolt SAE B mounting flange it facilitates straightforward installation. This model features a 7/8 straight keyed shaft for reliable power transmission. The unit is engineered with SAE-20 side inlet and SAE-12 side outlet ports supporting a pressure rating of 3600 psi. It offers clockwise rotation and operates efficiently within a temperature range of -20deg;F to 225deg;F. Designed for various sectors including agriculture civil engineering and material handling it provides reduced noise and vibration levels. The L2 Series Gear Pump supports a rated flow of 18.1 GPM and a speed rating of 2750 RPM. With enhanced volumetric and mechanical efficiency it is suitable for demanding industrial applications. Constructed for durability and performance this gear pump is a reliable choice for specialized construction primary metals and natural resource industries.

MPN: C1JY12

Supplier Part Number: 25504-RSC

Specifications

Application
Agricultural, Civil Engineering, Primary metals, Material handling, Speciality Construction, Metal Forming, Natural Resources
Configuration
32
Design Code
A
Displacement
2.33
Displacement
2.33
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction
Identification
Standard
Minimum Working Temperature
-20
Mount
2-Bolt SAE B
Mount
2-Bolt SAE B
Ports
SAE-20 Side Inlet, SAE-12 Side Outlet
Ports
SAE-20 Side Inlet, SAE-12 Side Outlet
Pressure Rating
3600
Rated Flow
18.10
Rated Flow
18.1
Rotation
CW
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Speed Rating
2750 RPM
Speed Rating
2750 RPM
Supplier Part Number
25504-RSC
Alternate Part Numbers
Alternate Part Number C1JY12, Alternate Part Number MINO-00287X54528
Product Weight
15.00 lbs

Related Documents

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Action
L2 Series Gear Pump, 1.55 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25501-RSC L2 Series Gear Pump

1.55

12

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

3000 RPM

3600

L2 Series Gear Pump, 2.05 cu in/rev, 2-Bolt SAE B Mounting Flange, 13 Tooth SAE B Splined Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25503-RSA L2 Series Gear Pump

2.05

15.9

2-Bolt SAE B

13 Tooth SAE B Splined

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

L2 Series Gear Pump, 2.33 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CCW Rotation.

25504-LSC L2 Series Gear Pump

2.33

18.1

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CCW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

L2 Series Gear Pump, 2.33 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

25504-RSC L2 Series Gear Pump

2.33

18.1

2-Bolt SAE B

7/8 Straight Keyed

SAE-20 Side Inlet, SAE-12 Side Outlet

CW

Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction

2750 RPM

3600

Product Questions & Answers (2)

Question by: Stan P on Jul 26, 2025, 12:06 PM
What kind of machines would you typically find this gear pump on?
Answer by: Customer Support on Jul 28, 2025, 6:44 AM
You'll find this L2 series gear pump used in agricultural equipment, civil engineering projects, material handling systems, specialty construction, metal forming, and even natural resource extraction applications.
Question by: Rusty W on Mar 1, 2026, 9:05 PM
pump says CW rotation on the tag, but I need it to spin the other way for my setup, is that something that can be changed out in the field or do I need a whole different unit?
Answer by: Customer Support on Mar 3, 2026, 8:19 AM
Field reversible pump direction is actually a listed feature on this L2 Series, so you're not stuck buying a separate unit just to flip the rotation. That's a nice flexibility to have when you're retrofitting into an existing system that was plumbed the opposite way.
