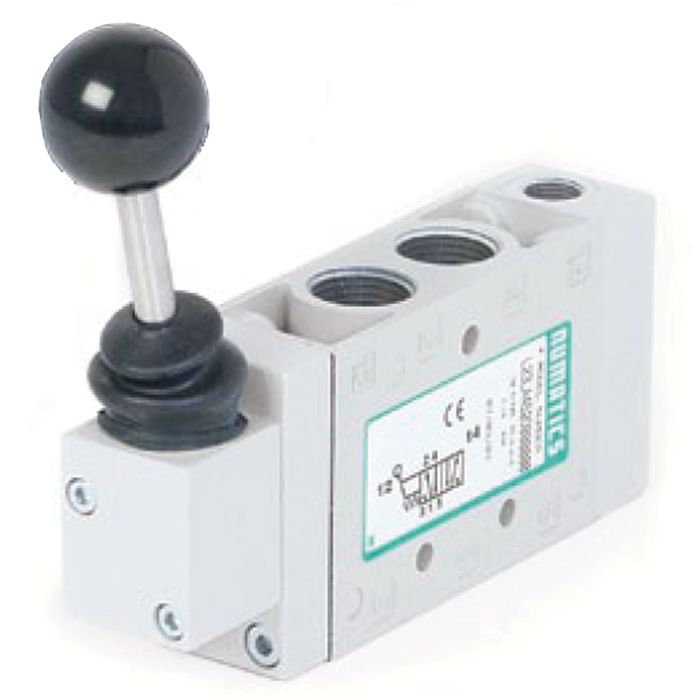

L2 Series 4-Way Manually Operated Pneumatic Valve, Hand Lever, Detent, 1/4 Inch NPT Ports, Up To 79

Description & Features

Experience reliable control with the Numatics L2 Series 4-Way Manually Operated Pneumatic Valve. Designed for industrial applications, this valve features a hand lever mechanism with a detent spool action for precise operation. It accommodates 1/4 inch NPT ports and supports flow ratings up to 79 SCFM, making it suitable for a wide range of pneumatic systems. The valve operates efficiently within a pressure range from 28" Hg Vacuum to 150 PSIG and a temperature range of -10°F to +115°F. Whether for unlubricated or lubricated service, this directional valve offers flexible mounting options, including in-line or manifold setups, enhancing its versatility in industrial environments.

SKU: L22LD452O000000

Supplier Part Number (MPN): L22LD452O000000

Alternate Part Numbers: C1LC67, MI-06032864, MINO-00609X49972

Specifications

Brand Asco	Actuator Type Detent Lever	Body Material Aluminum	Connection Type NPT	Disc Material Brass	Finish Anodized	grp Lubrication Unlubricated or Lubricated Service	Media Air	Nominal Size 1/4 in	Number of Ports/Ways 4	Number of Positions 2	Seal Material Buna-N	Seat Material Buna	Series L2 Series	Softgoods Material Nitrile	Stem Material Stainless Steel	Trim Material Brass	Valve Type Hand Lever

Similar Products

Model Number	Valve Type	Spool Action	Ports	Flow Rating (SCFM)	CV Factor	Price	Action
L22LA452O000000 L2 Series Manual Pneumatic Valve	Hand Lever	Spring Return	1/4	79	1.7000

Product Questions & Answers (3)

Question by: Stan P on Feb 17, 2026, 8:54 AM

What size are the ports on this valve?

Answer by: Customer Support on Feb 19, 2026, 6:50 AM

It comes with 1/4 inch NPT ports.

Question by: Sherry C on Mar 12, 2026, 7:14 PM

got a setup that uses 1/4 NPT lines. is this valve actually 1/4 NPT ports or am i gonna be hunting adapters

Answer by: Customer Support on Mar 14, 2026, 3:35 PM

Porting is 1/4 inch NPT, so it matches standard 1/4 NPT fittings and lines without needing adapters just to make the ports work.

Question by: Neal W on Jun 28, 2025, 4:36 PM

Flow rating on this thing says up to 79 SCFM, is that enough to run most standard pneumatic actuators off a quarter-inch line?

Answer by: Customer Support on Jun 30, 2025, 1:28 PM

For most single-acting or double-acting pneumatic cylinders running off 1/4 inch ported equipment, 79 SCFM is plenty of headroom. The Cv factor on this valve is 1.7, which translates to solid airflow for typical actuator work at that port size. Just make sure your supply pressure stays within the 28 inch Hg vacuum to 150 PSIG operating range and you won't be leaving performance on the table.
