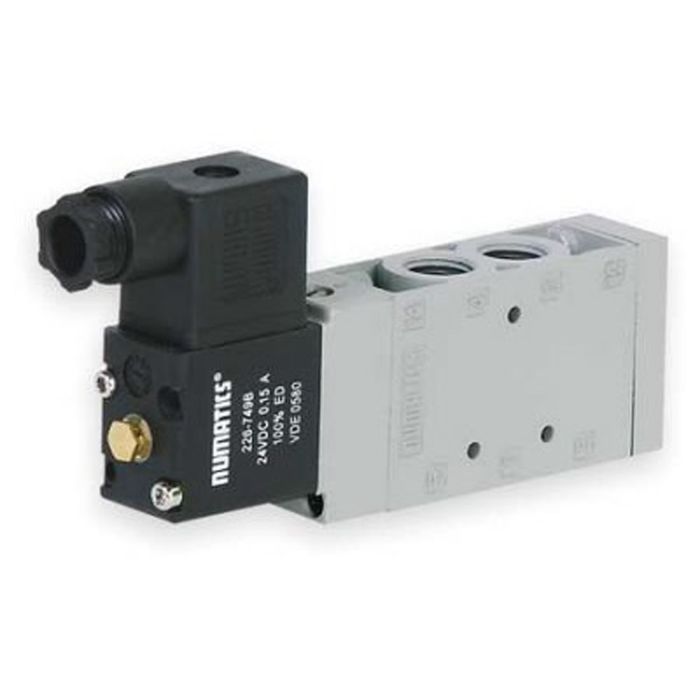

L2 Series 4-Way Solenoid Operated Pneumatic Valves, Up To 79 SCFM

Description & Features

Features	Solenoid air pilot or air pilot actuated. Hand-lever valves available. DIN plug-in solenoid and plug connector with indicator light. In-line or manifold mounted. Integral speed control available.
Lubrication	Unlubricated or lubricated service.
Operating Pressure Range	28'' Hg Vacuum to 150 PSIG
Shift Pressure	14.5 to 150 PSIG
Temperature Range	-10°F to +115°F

Model Number	Valve Type	Spool Action	Voltage	Ports	Flow Rating (SCFM)	CV Factor
L22BA452B000061 L2 Series Solenoid Pneumatic Valve	Single Solenoid Air Pilot	Spring Return w/Flush Locking Override	24 VDC	1/4	79	1.7000
L22BA452O000030 L2 Series Solenoid Pneumatic Valve	Single Solenoid Air Pilot	Spring Return w/Flush Locking Override	110 VAC	1/4	79	1.7000
L22BB452B000061 L2 Series Solenoid Pneumatic Valve	Double Solenoid Air Pilot	Detent w/Flush Locking Override	24 VDC	1/4	79	1.7000
L22BB452O000030 L2 Series Solenoid Pneumatic Valve	Double Solenoid Air Pilot	Detent w/Flush Locking Override	110 VAC	1/4	79	1.7000
